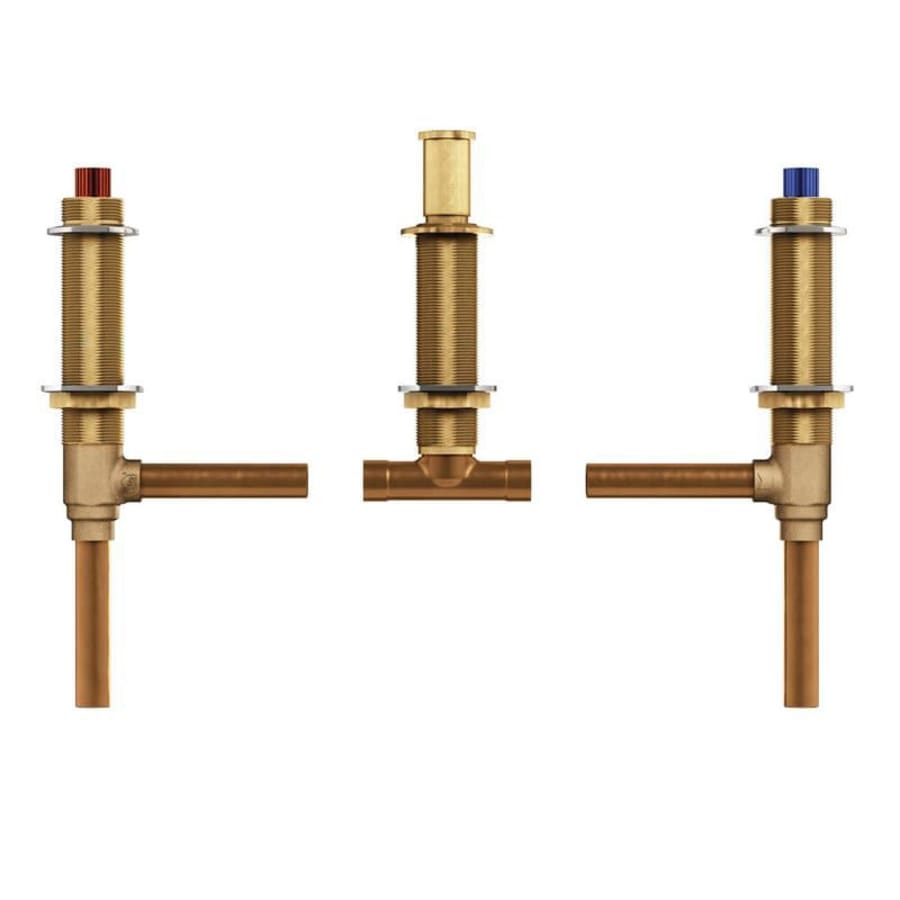

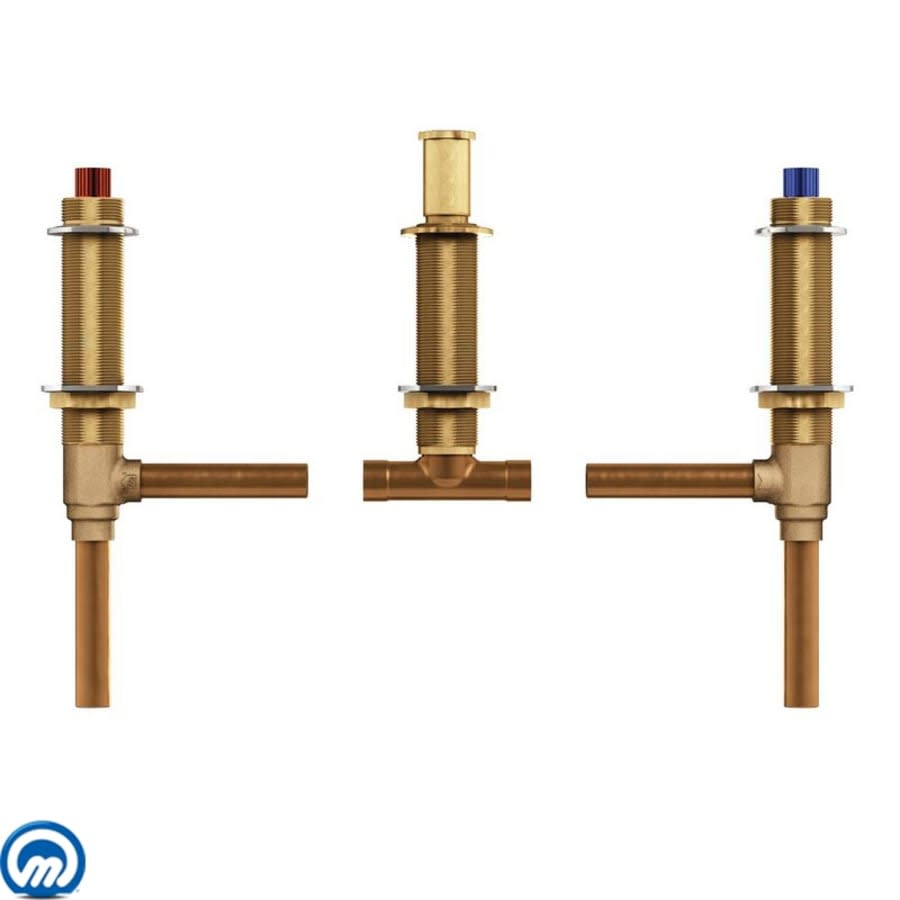

1/2 Inch Sweat (Copper-to-Copper) Roman Tub Rough-In Valve with Adjustable Centers from the M-PACT Collection

Product Features:

• Valve is constructed of metal ensuring durability and dependability
• Covered under Moen's limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Features Moen's M-PACT® common valve system
• Designed for sweat (CC) inlet / outlet connections
• Test plug is included with valve
• Sturdy mounting bracket included with valve
• Note: This is the rough-in valve only - valve trim is required to complete product

Product Technologies / Benefits:

M-PACT® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACT® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.

Product Specifications:

• Connection Size: 1/2"
• Connection Type: Sweat (also known as "CC")
• Cartridge Included: 1258
• Flow Rate: 16 GPM
• Faucet Centers: 10" minimum (adjustable distance between handle installation holes)
• Maximum Deck Thickness: 3-3/8"

Variations:

• 4792: This model
• 4793: PEX connections with CPVC adapters
• 4794: PEX connections with cold expansion PEX adapters

Different Types of Valve Inlet / Outlet Connections:
