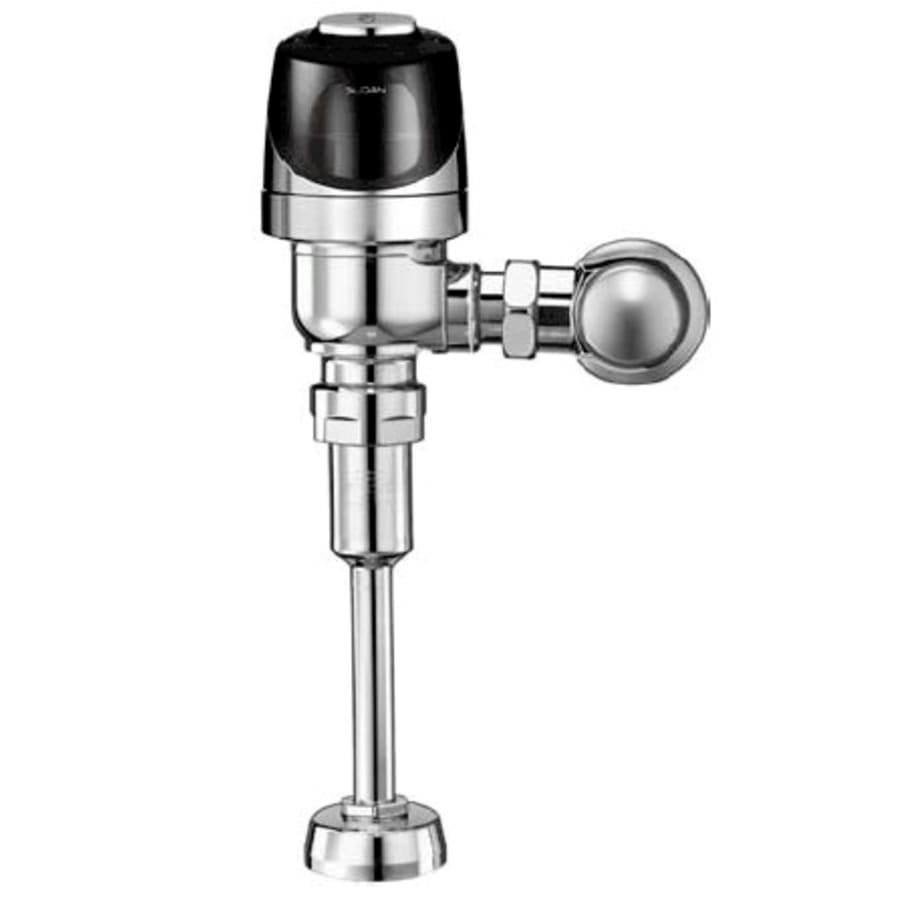

Eco Friendly (0.5 gpf) Exposed, Battery Powered, Sensor Operated G2 Model Urinal Flushometer for 3/4" top spud urinals

Eco Friendly (0.5 gpf) Exposed, Battery Powered, Sensor Operated G2 Model Urinal Flushometer for 3/4" top spud urinals

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply.

• 0.5 GPF
• PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant OPTIMA Plus(R) Battery Powered Infrared Sensor for automatic "No Hands" operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• Courtesy Flush(tm) Override Button
• Four (4) Size AA Batteries factory installed
• "Low Battery" Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• 3/4" I.P.S. Screwdriver Bak-Chek(R) Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 3/4" Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID(tm) Technology
• Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine resistance

Electrical Specifications:

Control Circuit:
Solid State
6 VDC Input
8 second Arming Delay
24 hour Sentinel Flush
OPTIMA Sensor Type:
Active Infrared
OPTIMA Sensor Range:
Nominal 15"-30" (381 mm-762 mm), adjustable ± 8" (203 mm)
Battery Type:
Four (4) AA Alkaline
Battery Life:
3 years @ 4,000 flushes/month
Indicator Lights:
Range Adjustment/Low Battery
Sentinel Flush:
Once every 24 hours after the last flush
Operating Pressure:
15-100 psi (104-689 kPa)

Automatic:
Sloan G2 Optima Plus(R) Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away.
Functional & Hygienic:
Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a "courtesy flush" for individual user comfort.
Economical:
Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.
Warranty:
3 year (limited)
