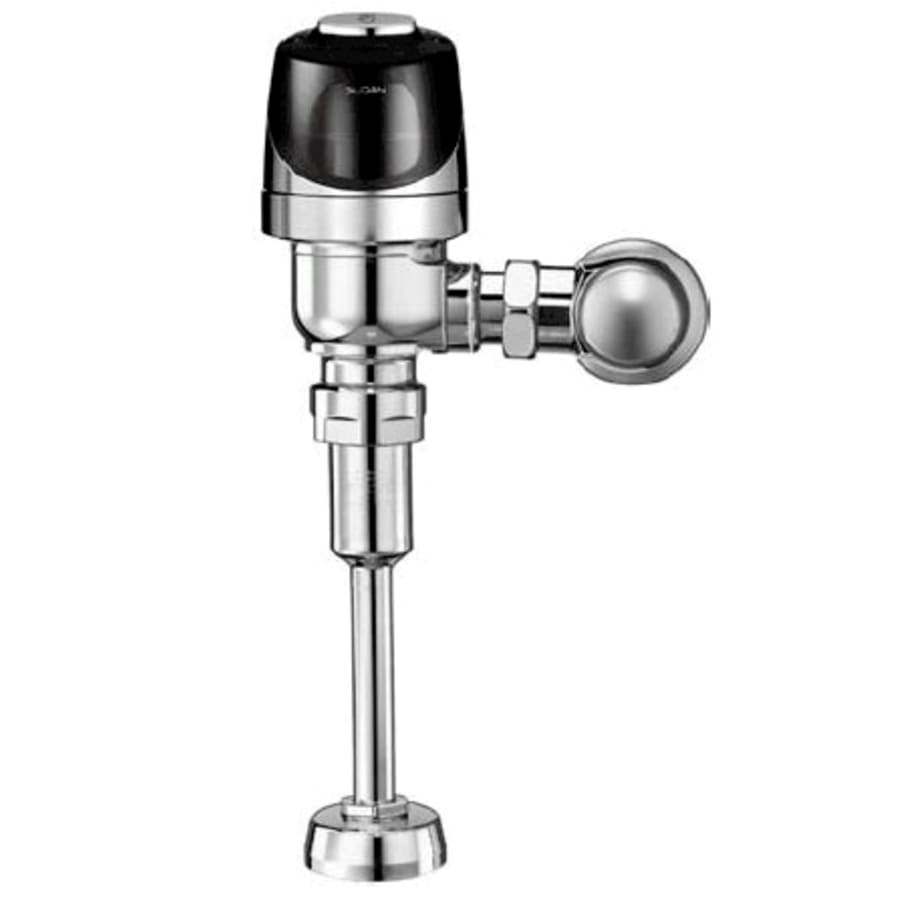

Exposed, Battery Powered, Low Consumption (1.0 gpf/3.8 Lpf), Sensor Operated G2® Model Urinal Flushometer for 3/4" top spud urinals

Sloan 8186-1.0 Features:

• 3/4" top spud placement
• OPTIMA Plus Battery Powered Infrared Sensor for automatic "No Hands" flushing
• Valve body constructed from semi-red brass
• ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
• Covered under Sloan's 3 year limited warranty
• 4 AA alkaline batteries included

Sloan 8186-1.0 Technologies / Benefits:

• Diaphragm flushometer:

  Handle actuated manual flushometer with set pressure diaphragms to regulate flush volume to a specific rating.

• Sloan G2 Optima Plus(R):

  Sloan G2 Optima Plus(R) Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away.

• Economical:

  Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.

Sloan 8186-1.0 Specifications:

• Flow Rate: 1.0 gallons-per-flush
• Operating Input Voltage: 6
• Operating Pressure: 15 - 100 psi (104 - 689 kPa)
• Spud Placement: Top
• Hardwired: No
• Spud Connection Size: 3/4"
• I.P.S. Measurement: 3/4"
• Battery Life (Batteries Included): 6 Years at 4,000 flushes/month
