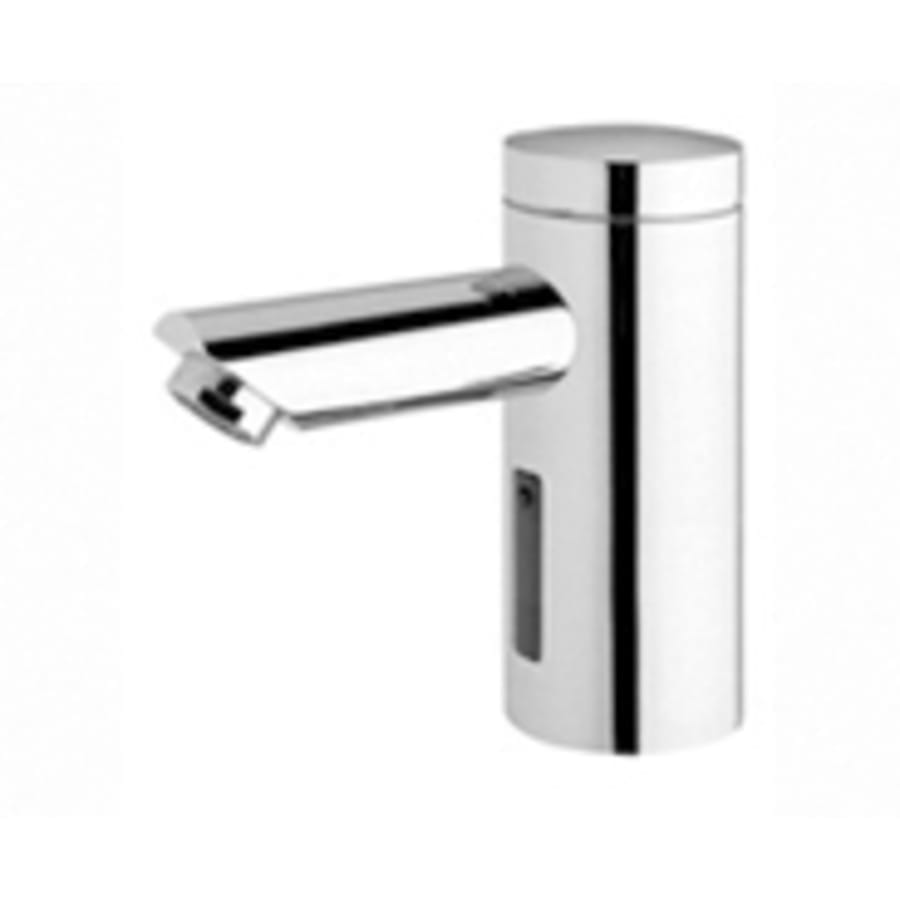

Sensor Activated, Electronic Hand Washing Faucet for Pre-Tempered (Mixed) Water. (AC Powered)

Sensor Activated, Electronic Hand Washing Faucet for Pre-Tempered (Mixed) Water. (AC Powered)

Sloan's new Optima I.Q EAF-200 Series electronic hand washing faucets
operate by means of a dual infrared sensor and microprocessor based logic.
The modular design incorporates all of the operating components of the
faucet, including the sensor, solenoid and circuitry above the sink within a
die-cast metal spout.
ISM models feature an integral temperature control lever which allows the
user to adjust the water temperature. This adjustment can also be converted
to a fixed setting. EAF faucets ordered without the ISM variation must be
connected to a single, pre-tempered water supply.
The I.Q. Click feature allows the user to place the faucet into optional function
modes, including "continuous run" and "temporary off" simply by pressing a
button on the spout. The use of the I.Q feature is recommended only in
installations where users have a regular familiarity with the faucet (i.e.,
executive and non-public rest rooms). Models furnished with the I.Q.
feature are also available with a Drain Pop Up. Optima I.Q. EAF-200 series faucets are powered by a 6 VDC plug-in
transformer.

• Modular One-piece Construction w/ all Concealed Components above deck
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt DC Plug-in Transformer Included

• Appropriate Mounting Hardware included

Variations:

• EAF-200 - No I.Q. Click feature, single supply pre-mixed water
• EAF-200-P-ISM - No I.Q. Click feature, hot and cold supplies (integral spout mixer)
• EAF-200-P-ISM-IC - With I.Q. Click, hot and cold supplies (integral spout mixer)
• EAF-200-P-ISM-DPU-IC - With I.Q. Click, hot and cold supplies (integral spout mixer), and brass pop-up drain.
