Product Description

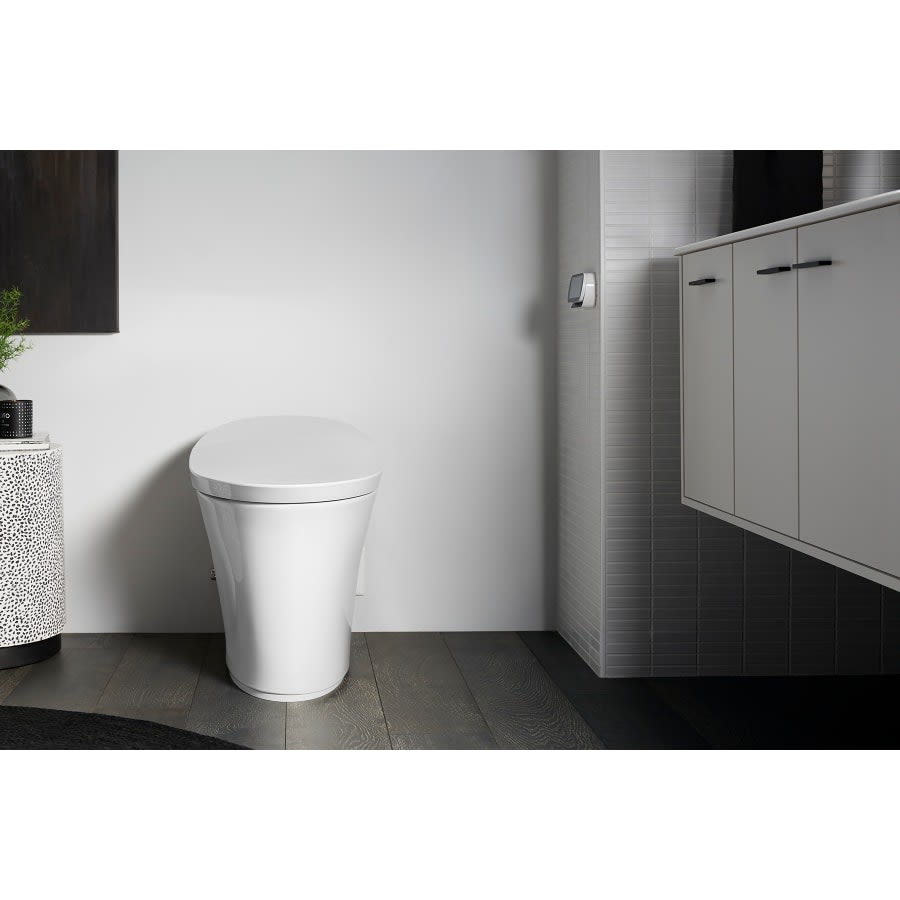

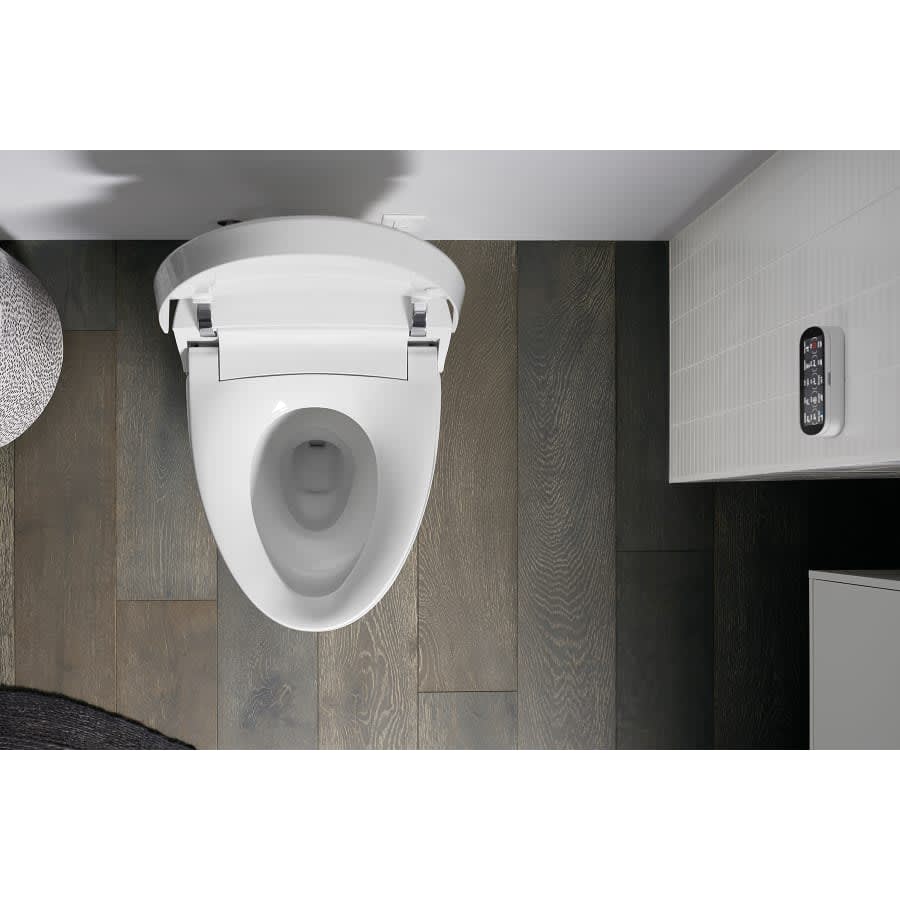

Sculpted with flowing and balanced curves, the Veil® one-piece toilet pairs bold minimalist style with the comfort of personal cleansing. Upgraded to a 17" seating height, this Veil® dual-flush toilet meets ADA code requirements. Pump-assisted flushing delivers peak flush performance every time. A full suite of convenient features includes heated seat, night-light, hands-free opening/closing and automatic flush, plus a touchscreen remote. With emergency backup flushing at the touch of a button, you're always covered in the event of a power outage.

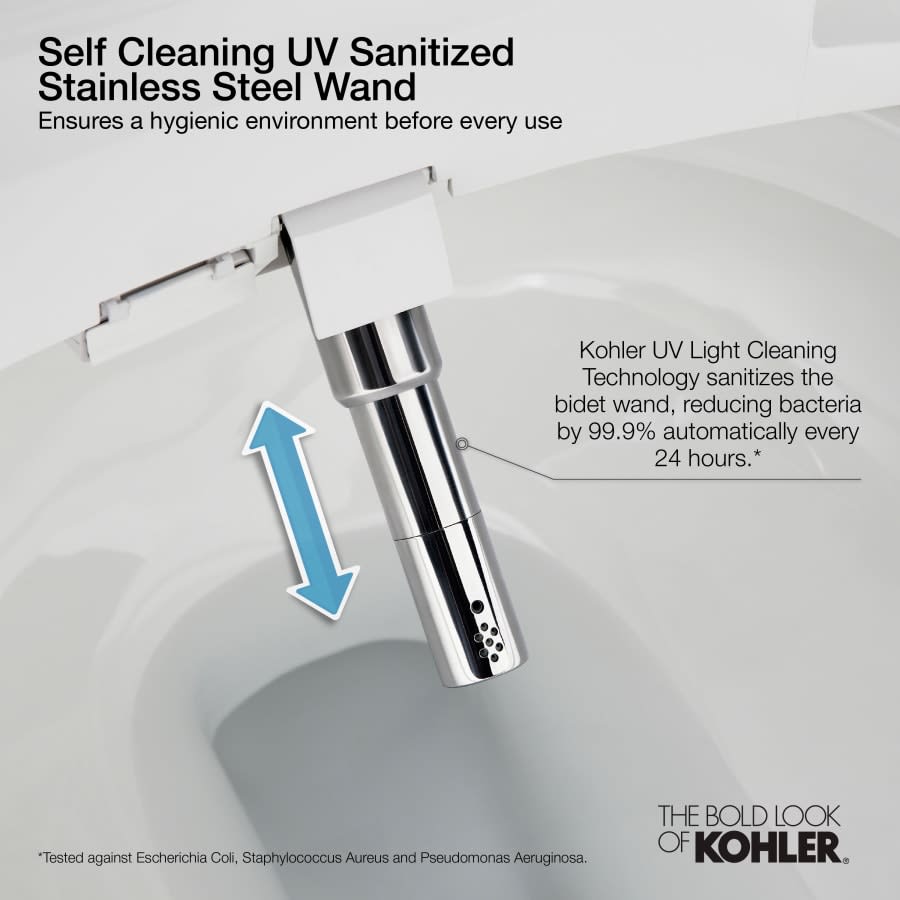

KOHLER UV-light technology automatically cleans the bidet wand every 24 hours, reducing bacteria by 99.9%.*
*Tested against Escherichia coli, Staphylococcus aureus, and Pseudomonas aeruginosa.
Kohler K-5401-PA Features:
- Compact, streamlined one-piece intelligent toilet with integrated personal cleansing.
- Elongated bowl offers added room and comfort.
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults.
- Tankless design with direct water supply.
- Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions.
- Front and rear wash modes provide warm water for cleansing.
- Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces.
- Warm-air drying system with adjustable temperature settings.
- Automatic deodorization system.
- Heated seat with adjustable temperature settings.
- Motion-activated, hands-free opening/closing of cover.
- Quiet-Close™ elongated seat closes quietly.
- LED lighting illuminates the bowl to serve as a nightlight.

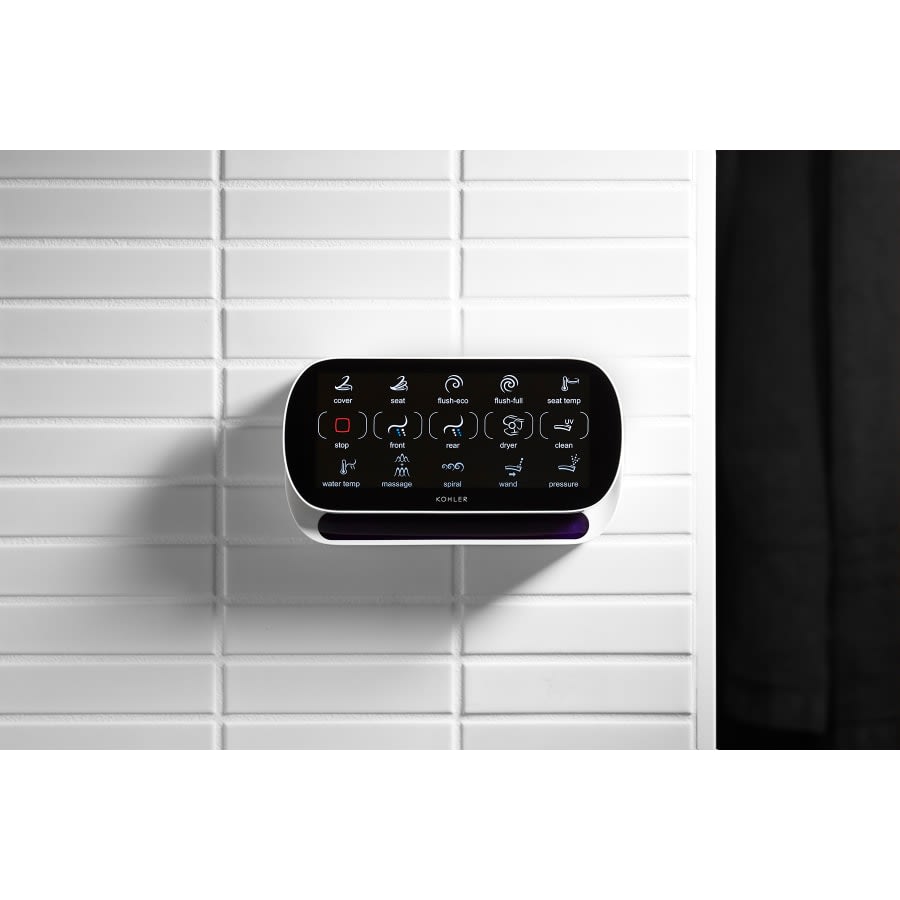

- English-language touchscreen LCD remote control.
- Emergency flush supports up to 100 flushes during power outage with simple touch-button activation.
- Dual flush offers a choice of 0.8 or 1.19 gpf (3.0 or 4.5 lpf).
- Includes: Complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and remote control.
- Covered under Kohler's 3 year limited warranty
Kohler K-5401-PA Specifications:
- Overall Height: 21-7/16” (bottom of the base to the highest point on the toilet)
- Overall Depth: 29-3/8” (furthest point back to front of toilet)
- Overall Width: 16-3/8” (furthest point left to furthest point on the right)
- Bowl Height: 16-1/8” (floor to the top of the bowl)
- Flow Rate: 0.8/1.28 (gallons-per-flush)
- Water Area: 7-15/16" x 5-5/8" (inner bowl dimensions length x width)
- Rough-In: 12”
- Distance Between Toilet Seat Installation Holes: 5-1/2”
Dimensions and Measurements
- Bowl Height
- 16.125 in.
- Depth
- 26.125 in.
- Gallons Per Flush
- 0.8, 1.28
- Height
- 21.4375 in.
- Hinge Center to Center
- 5.5 in.
- Product Weight
- 114.6 lbs.
- Rough In
- 12 in.
- Trapway
- 1.9375 in.
- Width
- 17.25 in.
Included Components
- Bidet Seat Included
- Yes
- Seat Included
- Yes
Characteristics and Features
- Bowl Shape
- Elongated
- Configuration
- One Piece
- Design Features
- Dual Flush, Concealed Trapway, Soft Close, Chair Height, Low Profile
- Electronic
- Yes
- Installation Type
- Floor Mounted
- Seat Front
- Closed
- Tech Features
- Heated Seat
- Theme
- Modern
Warranty and Product Information
- ADA
- Yes
- ANSI Certification
- A117.1
- ASME Code
- A112.19.2
- Certifications
- ANSI, ASME, CSA
- Collection
- Intelligent, Veil
- Country Of Origin
- China
- CSA Code
- B45.1
- Manufacturer Warranty
- 3 Year Limited
