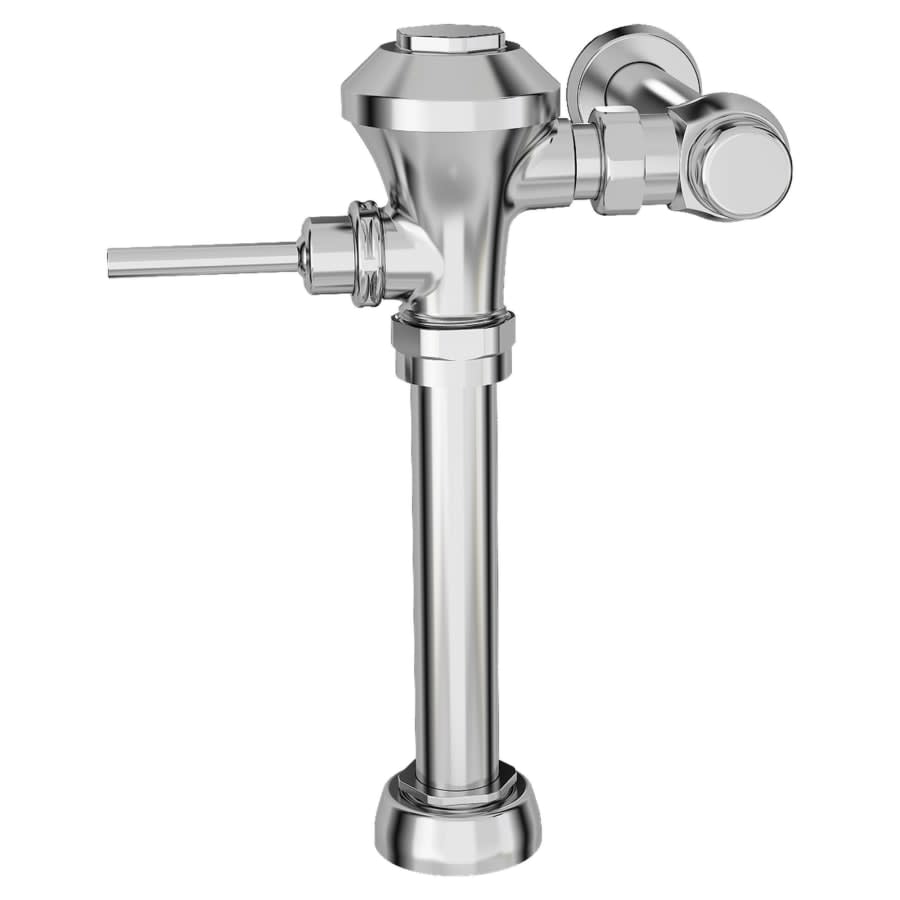

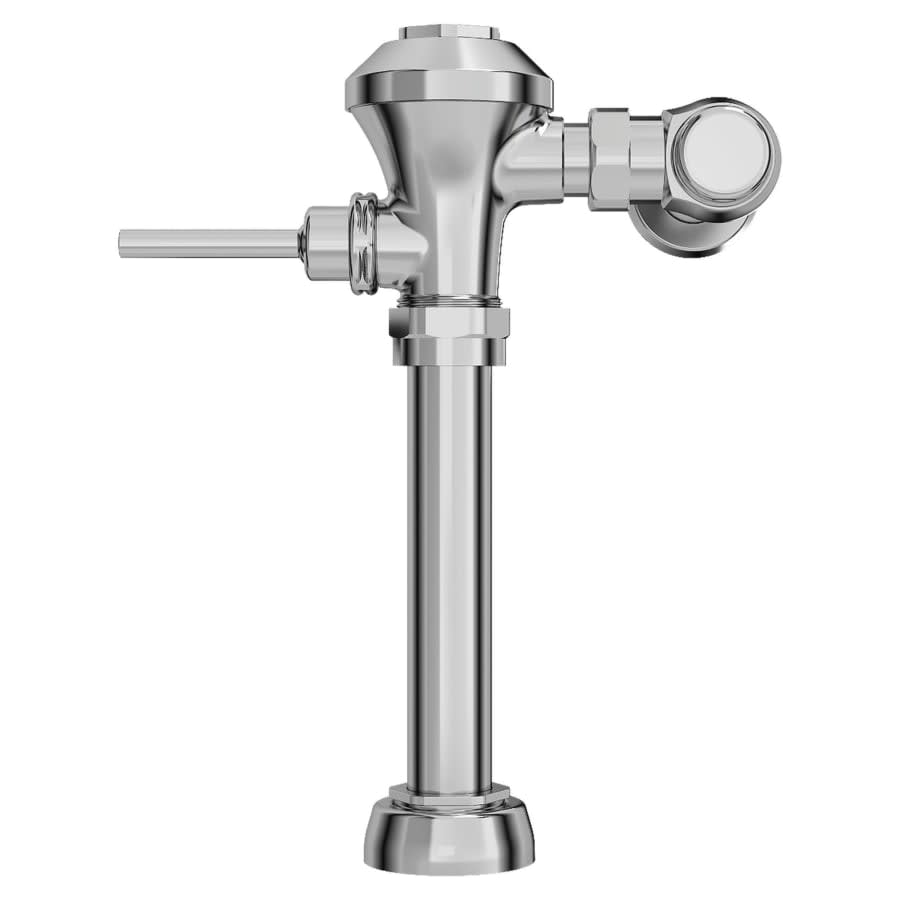

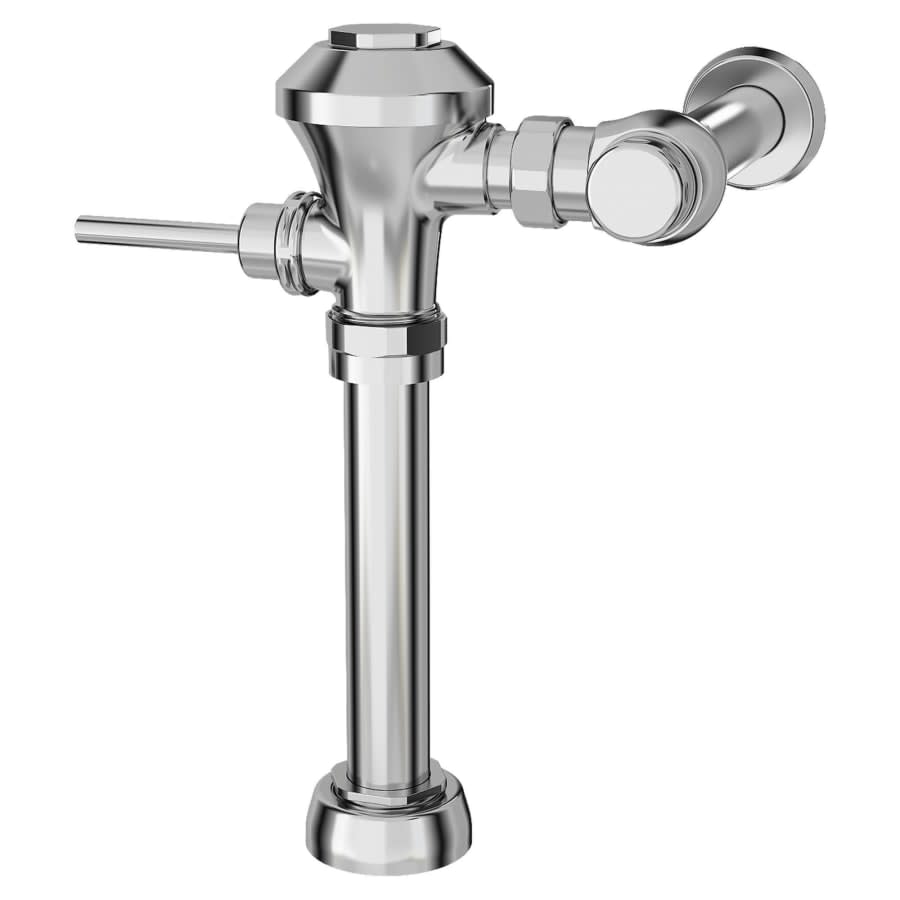

Ultima 1.6 GPF Manual Toilet Flushometer for 1-1/2" Top Spud with DynaClean and EvoLast Technologies

American Standard 6147.161 Features:

• DynaClean wiper spring technology significantly reduces maintenance and downtime
• Premium, chlorine resistant EvoLast diaphragm material prevents premature deterioration and failure
• Delivers consistent flushing performance and water savings over time
• Dezincification-resistant brass alloy withstands the most severe water conditions
• Non-hold open handle provides automatic shut-off
• High back pressure vacuum breaker prevents dripping
• Adjustable tailpiece for rough-in flexibility
• Can be installed left or right handed

American Standard 6147.161 Technologies and Benefits:

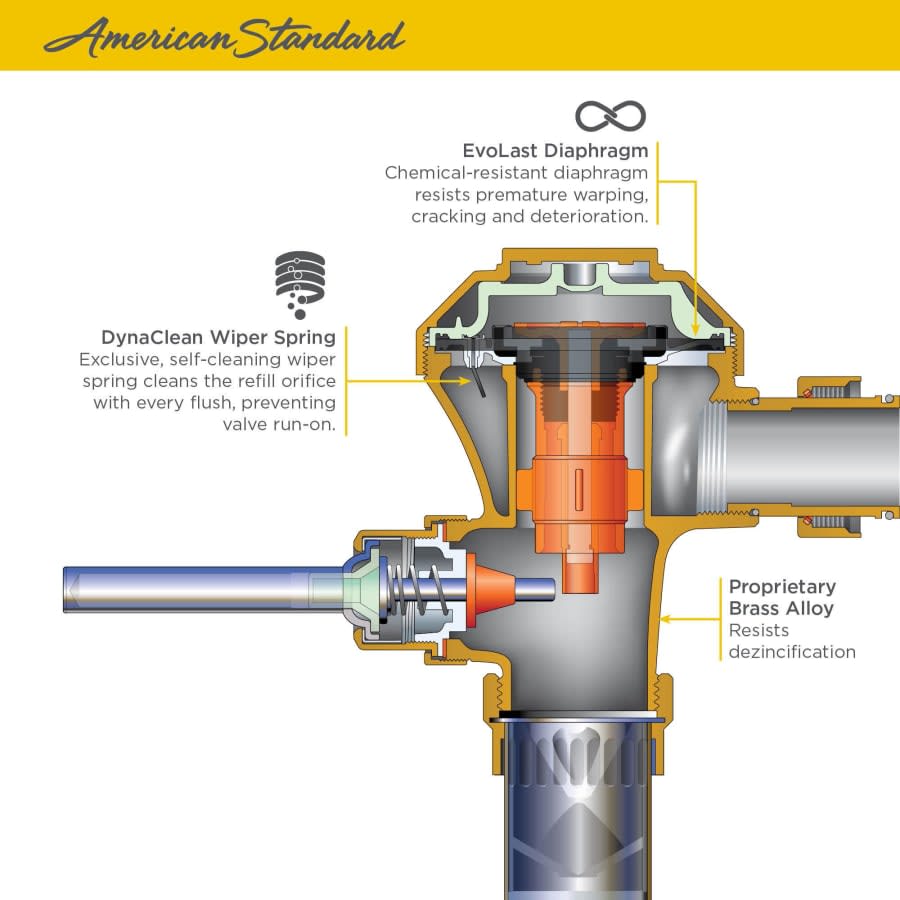

• DynaClean: An exclusive wiper spring positioned at the refill orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. The integral wiper spring keeps the orifice clear of debris and mineral build-up for improved performance and less maintenance.

• EvoLast: A premium, chlorine-resistant diaphragm material that delivers consistent performance and resists premature deterioration and failure.

American Standard 6147.161 Specifications:

• Height: 14-5/8" (top to bottom)
• Width: 4-3/4" (left to right)
• Depth: 1-1/2" (front to back)
• Flow Rate (GPF): 1.6 gallons-per-flush
• Spud Connection Size: 1-1/2"
