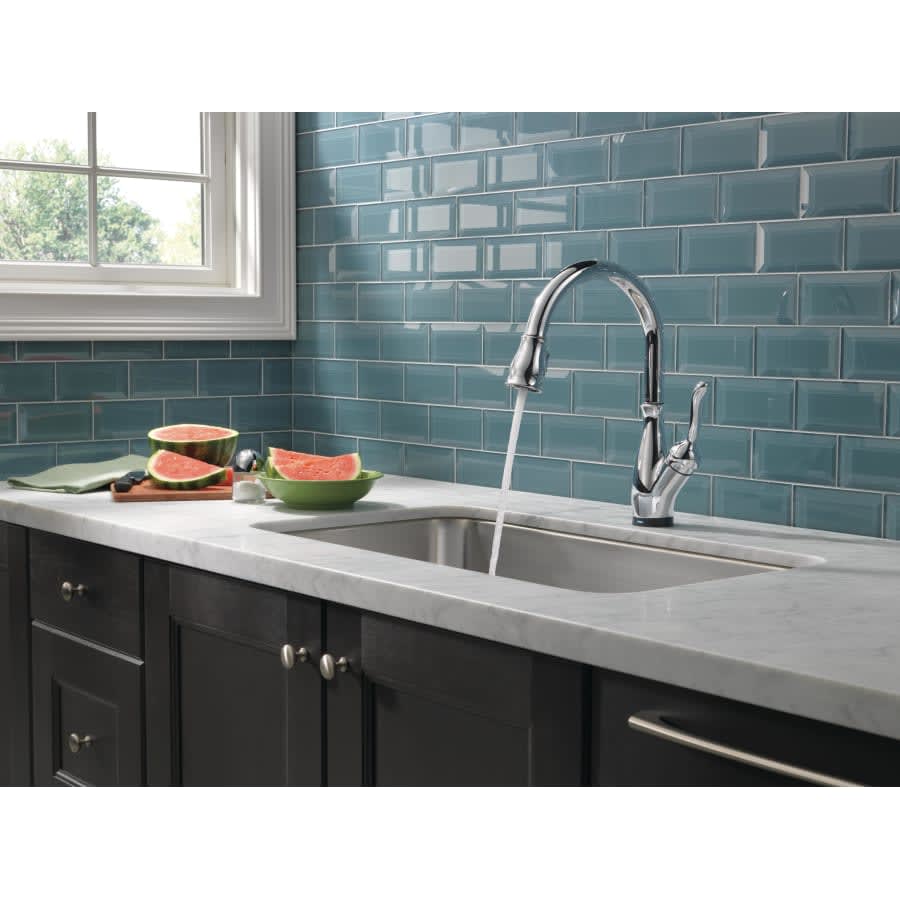

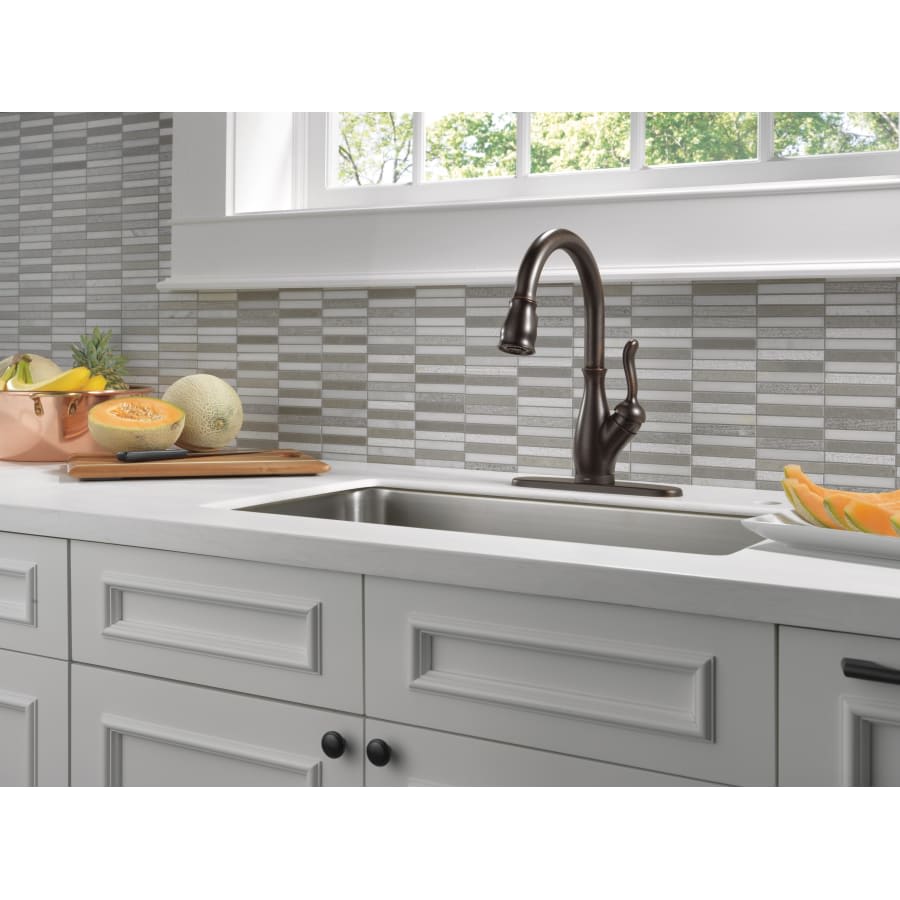

Product Description

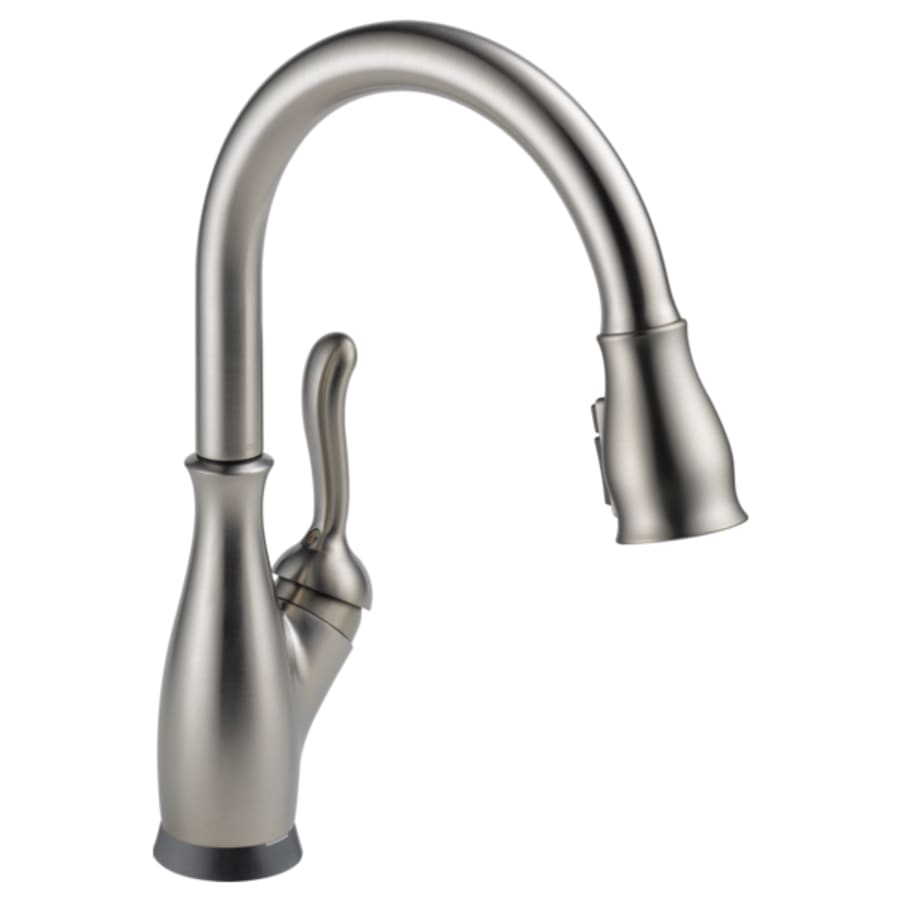

Delta 9178T-DST Features:
- Covered under Delta's limited lifetime warranty (5 year electronic parts)

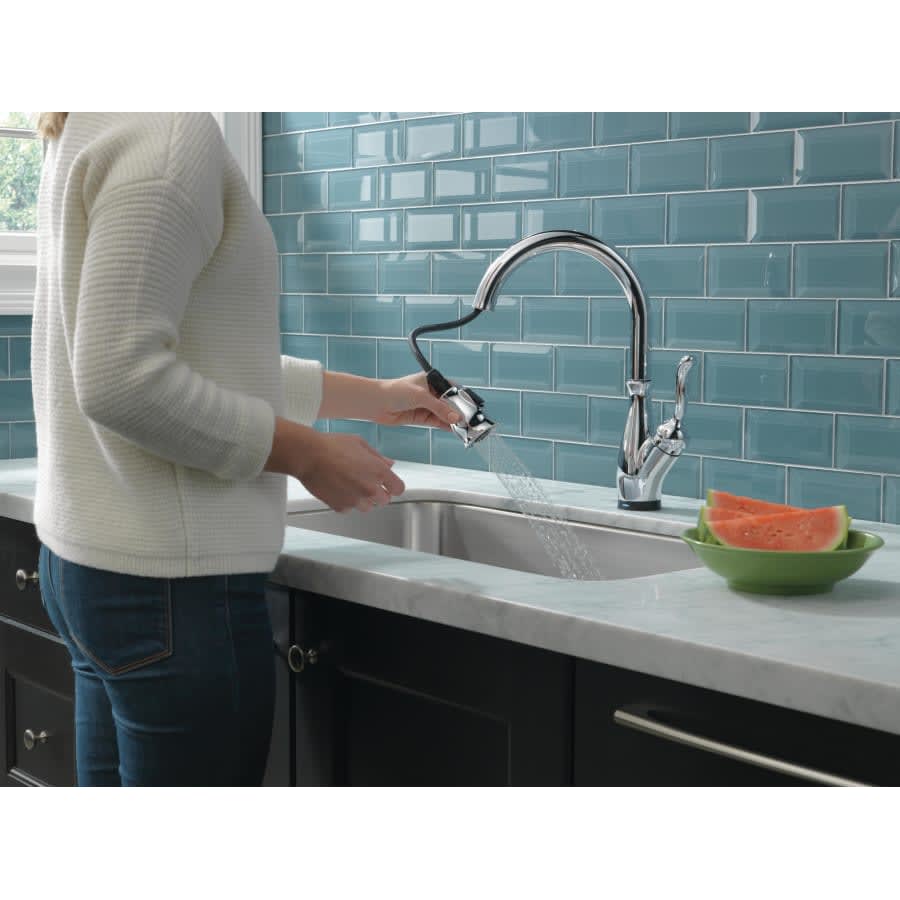

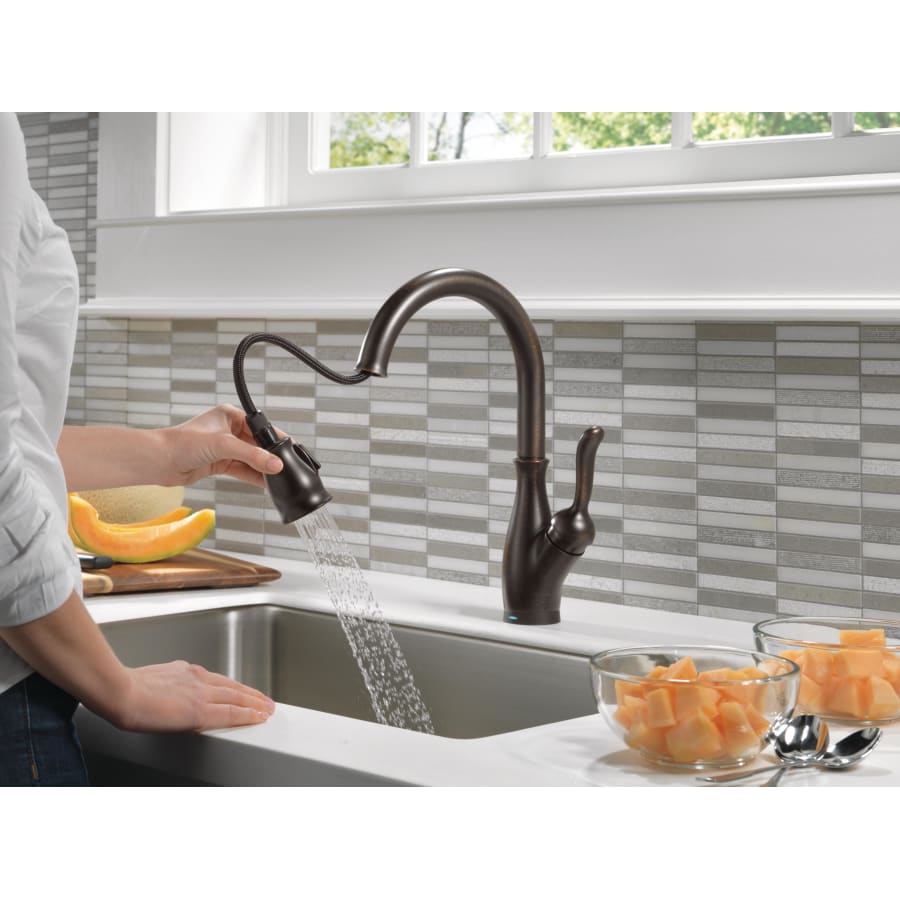

- Pull-down spray head with dual function spray
- Magnetic docking pullout spray head with toggle spray switch
- ShieldSpray technology powers off the mess without making a mess
- Spout swivels 360 degrees providing greater access to more areas of the sink
- Automatic water flow shut-off after four minutes if the water is left running
- Battery operated (6 AA included) for up to 2 year battery life
- TempSense Technology LED light indicates water temperature change
- Operates with Touch2O functionality and manually (with handle)
- ADA compliant
- California low flow compliant - Under 1.8 gallon-per-minute flow rate
- Diamond Seal valve cartridge last 2x the industry standard
- Optional A/C adapter EP102157 may be ordered separately
- VoiceIQ compatible: (when adding to cart, optional VoiceIQ Module will be offered)
Delta 9178T-DST Specifications:
- Height: 14-7/8" (deck to top of faucet)
- Spout Height: 7-7/8" (deck to spout outlet)
- Spout Reach: 9-13/64" (faucet base to spout outlet)
- Flow Rate: 1.8 gallons-per-minute
- Hole size: 1-3/8"
- Holes Required: 1
- Maximum Deck Thickness: 2-1/2"
- Escutcheon Width: 10-3/4"
Delta 9178T-DST Technologies / Benefits:
- ShieldSpray: Cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
- MagnaTite Docking: Delta's patented MagnaTite Docking Technology uses a powerful integrated magnet to securely hold your Delta kitchen faucet's pull-down spray in place when not in use. A light tug releases the wand for total flexibility and a full range of motion. When docking the wand after use, the MagnaTite Docking mechanism will guide the spray securely back into place.
- Touch Clean: Only Delta offers faucets equipped with Touch Clean soft, rubber nubbins (spray holes) that allow you to easily wipe away calcium and lime build-up with the touch of a finger. This is particularly helpful for areas with hard water.
- Diamond Seal: Delta DIAMOND Seal Technology utilizes a ceramic disc valve with a real diamond coating to produce a faucet that will last up to 5 million uses. That's an amazing 2 times the industry standard, guaranteeing a lifetime of leak-free, trouble-free performance.

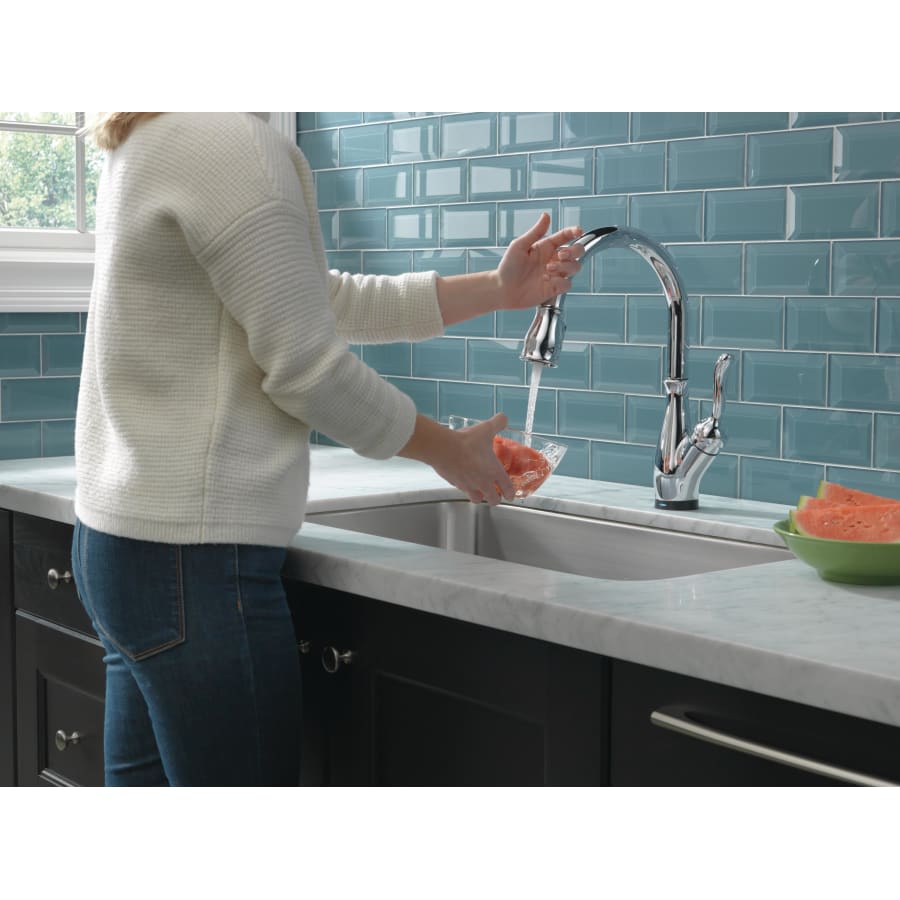

- Touch2O: This intuitive tap technology enables you to turn the faucet on and off with just a touch anywhere on the faucet's body or handle. This feature is particularly helpful when your hands are messy (such as cooking) or when on-demand water is needed (such as dishwashing). Touch2O faucets include an LED indicator light at the base of the faucet which lets you know the touch feature is active while also making the statement that you've got the latest-and-greatest in faucet technology. Touch2O kitchen faucets are designed to be easy enough to install that the typical homeowner can do it in less than an hour. Electricians are not required.
- VoiceIQ Compatible: Turn your water on/off, pour specific amounts, and even warm up water with just your voice using the optional VoiceIQ module which pairs with your connected Amazon® Alexa®- or Google® Assistant-enabled home device.
Dimensions and Measurements
- Escutcheon Width
- 10.75 in.
- Faucet Centers
- 0 in.
- Faucet Hole Size
- 1.375 in.
- Flow Rate (GPM)
- 1.8
- Height
- 14.875 in.
- Hose Length
- 54 in.
- Max Deck Thickness
- 2.5 in.
- Spout Height
- 7.875 in.
- Spout Reach
- 9.203 in.
- Spout Swivel
- 360 Degrees
- Water Connection
- 3/8"
Included Components
- Escutcheon Included
- Yes
- Filtering
- No
- Handles Included
- Yes
- Installation Hardware Included
- Yes
- Sidespray
- No
- Soap Dispenser Included
- No
- Valve Included
- Yes
Characteristics and Features
- Electronic
- Yes
- Faucet Holes
- 1
- Faucet Type
- Kitchen Faucet
- Handle Style
- Lever
- Installation Type
- Deck Mounted
- Magnetic Docking
- Yes
- Material
- Zinc
- Number Of Handles
- 1
- Pre Rinse
- No
- Pullout Direction
- Down
- Pullout Spray
- Yes
- Spout Style
- High Arc, Pull-Out
- Spout Type
- Swivel
- Theme
- Traditional
- Touch Faucet
- Yes
- Valve Type
- Ceramic Disc
- Water Connection Type
- Compression
- Water Efficient
- Yes
Manufacturer Technology
- Delta Smart Solutions
- MagnaTite Docking, Touch Clean, Touch2O, Diamond Seal Technology
- Diamond Seal
- Yes
- MagnaTite
- Yes
- Touch Clean
- Yes
- Touch2O
- Yes
Electrical and Operational Information
- Power Source
- Battery
Warranty and Product Information
- ADA
- Yes
- Approved for Commercial Use
- Yes
- CA Drought Compliant
- Yes
- Collection
- Leland
- Manufacturer Warranty
- 5 Year Limited Commercial, Limited Lifetime Residential
