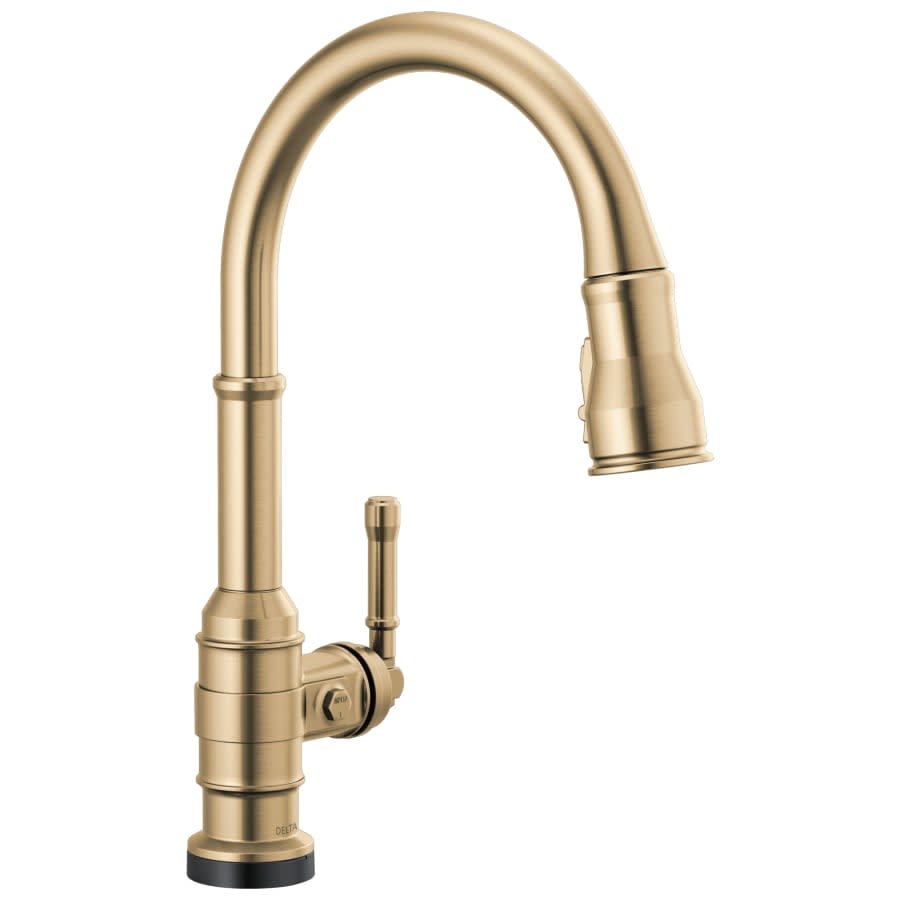

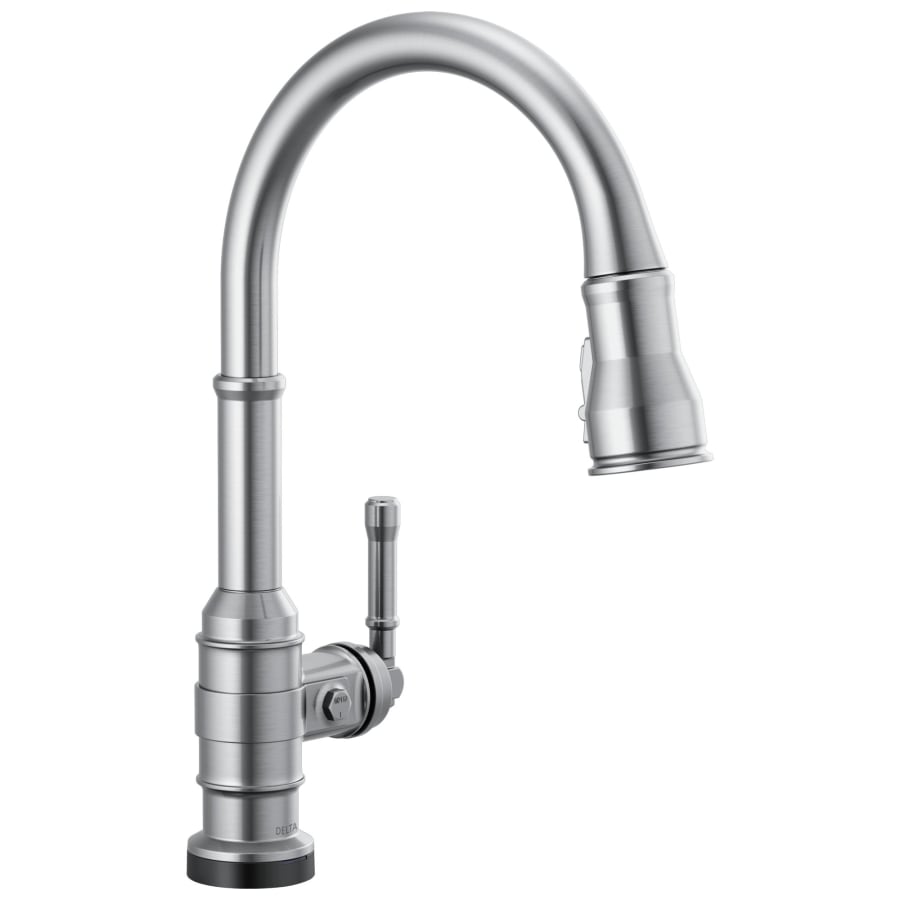

Product Description
Delta 9190T-DST Features:
- Faucet body constructed of brass
- Touch activated on/off faucet
- Single hole mounting type
- Deck mounted faucet installs directly to sink or countertop
- Pull-down spray with 3 spray function
- Swivel spout rotates 360 degrees which allows for greater access to all areas of the sink
- Single lever handle controls the flow and temperature of water
- Includes Euromotion ceramic disc cartridge
- Mounting hardware included
- Complies with ADA standards
- Low lead compliant
- Made in America
- Coordinates with products from the Broderick line
- Covered under Delta's lifetime limited warranty
- VoiceIQ compatible: (when adding to cart, optional VoiceIQ Module will be offered)
Delta 9190T-DST Technologies and Benefits:
- DIAMOND⢠Seal: Using diamonds, the hardest naturally-occurring substance on Earth, weâve engineered a faucet thatâs longer lasting, leak-free and less hassle to install.
- MagnaTite®: Delta MagnaTite Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesnât droop over time.
- Touch-Clean®: The Delta® soft, rubber Touch-Clean® Spray Holes make it easy to wipe away unsightly calcium and lime buildup with the touch of a finger, helping prevent your product from developing a mineral blockage which could reduce water flow. While other kitchen faucets, shower heads and hand showers may require chemical cleaners and soaking time to dissolve mineral buildup, Delta products featuring Touch-Clean Spray Holes can be simply wiped clean for improved performance and an instantly refreshed look.
- ShieldSpray®: Delta® ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet within a protective sphere of water powers away stubborn messes with an average of 90% less splatter than a standard spray, so you can spend less time soaking, scrubbing and shirt swapping.
- Touch2O®: Sometimes your hands could use a hand, which is why we designed Delta's Touch2O® Technology for the kitchen. With a simple touch anywhere on the spout or handle using your wrist or forearm, you can start or stop the flow of water from your faucet. The temperature and flow rate are easily set by your faucet handle for simple operation, designed to make everyday kitchen tasks a little easier. The built-in Delta TempSense⢠LED light at the base of the faucet indicates the temperature of the water, eliminating any possible surprises or discomfort. Touch it on. Touch it off. Experience the convenience and control of Delta kitchen faucets featuring Touch2O Technology.
- VoiceIQ Compatible: Turn your water on/off, pour specific amounts, and even warm up water with just your voice using the optional VoiceIQ module which pairs with your connected Amazon® Alexa®- or Google® Assistant-enabled home device.
Delta 9190T-DST Specifications:
- Height: 16-1/8" (deck to top of faucet)
- Spout Height: 8-3/8" (deck to spout outlet)
- Spout Reach: 9-5/8" (center of faucet body to center of spout outlet)
- Flow Rate: 1.8 gallons-per-minute
- Faucet Holes: Single Hole
- Faucet Hole Size: 1.3125, 1.5"
- Max Deck Thickness: 2-1/2" (cannot mount on thicker decks)
Dimensions and Measurements
- Faucet Centers
- 0 in.
- Faucet Hole Size
- 1.3125, 1.5 in.
- Flow Rate (GPM)
- 1.8
- Height
- 16.125 in.
- Max Deck Thickness
- 2.5 in.
- Spout Height
- 8.375 in.
- Spout Reach
- 9.625 in.
- Spout Swivel
- 360 Degrees
- Water Connection
- 3/8"
Included Components
- Escutcheon Included
- No
- Filtering
- No
- Handles Included
- Yes
- Installation Hardware Included
- Yes
- Sidespray
- No
- Soap Dispenser Included
- No
- Valve Included
- Yes
Characteristics and Features
- Bridge Faucet
- No
- Electronic
- Yes
- Faucet Holes
- 1
- Faucet Type
- Kitchen Faucet
- Handle Material
- Brass
- Handle Style
- Lever
- Installation Type
- Deck Mounted
- Magnetic Docking
- Yes
- Material
- Brass
- Mounting Type
- Single Hole
- Number Of Handles
- 1
- Pre Rinse
- No
- Pullout Direction
- Down
- Pullout Spray
- Yes
- Smart Home
- No
- Spout Type
- Swivel
- Spray Settings
- 3
- Theme
- Modern
- Touch Faucet
- Yes
- Touchless Faucet
- No
- Valve Type
- Ceramic Disc
- Voice Activated
- No
- Water Connection Type
- Compression
- Water Efficient
- Yes
Manufacturer Technology
- Delta Smart Solutions
- Diamond Seal Technology, MagnaTite Docking, Touch Clean, Touch2O
- MagnaTite
- Yes
- Touch Clean
- Yes
- Touch2O
- Yes
- Valve Technology
- Diamond Seal, Euromotion
Electrical and Operational Information
- Power Source
- Plug-In, Battery, Hardwired
Warranty and Product Information
- ADA
- Yes
- ANSI Certification
- A117.1
- Approved for Commercial Use
- Yes
- ASME Code
- A112.18.1
- CA Drought Compliant
- Yes
- Certifications
- CSA, ANSI, ASME
- Collection
- Broderick
- Commercial Warranty
- 5 Year Limited
- Country Of Origin
- USA
- CSA Code
- B125.1
- Low Lead Compliant
- Yes
- Made in America
- Yes
- Manufacturer Warranty
- Limited Lifetime
