Product Description

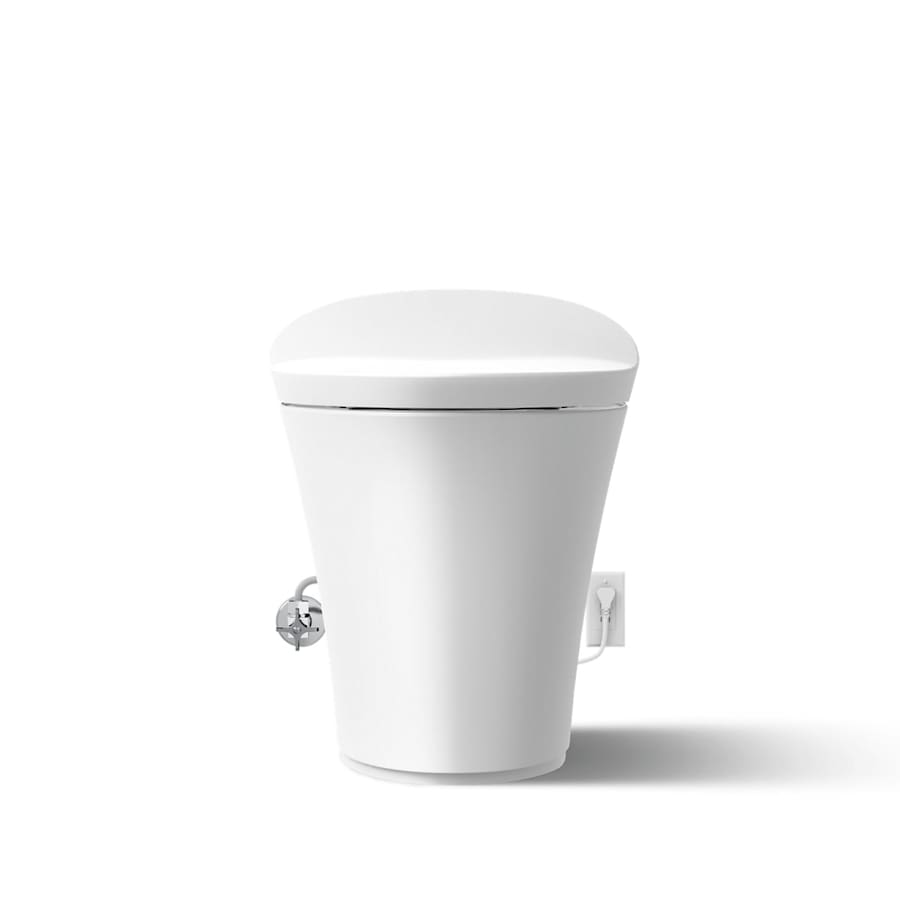

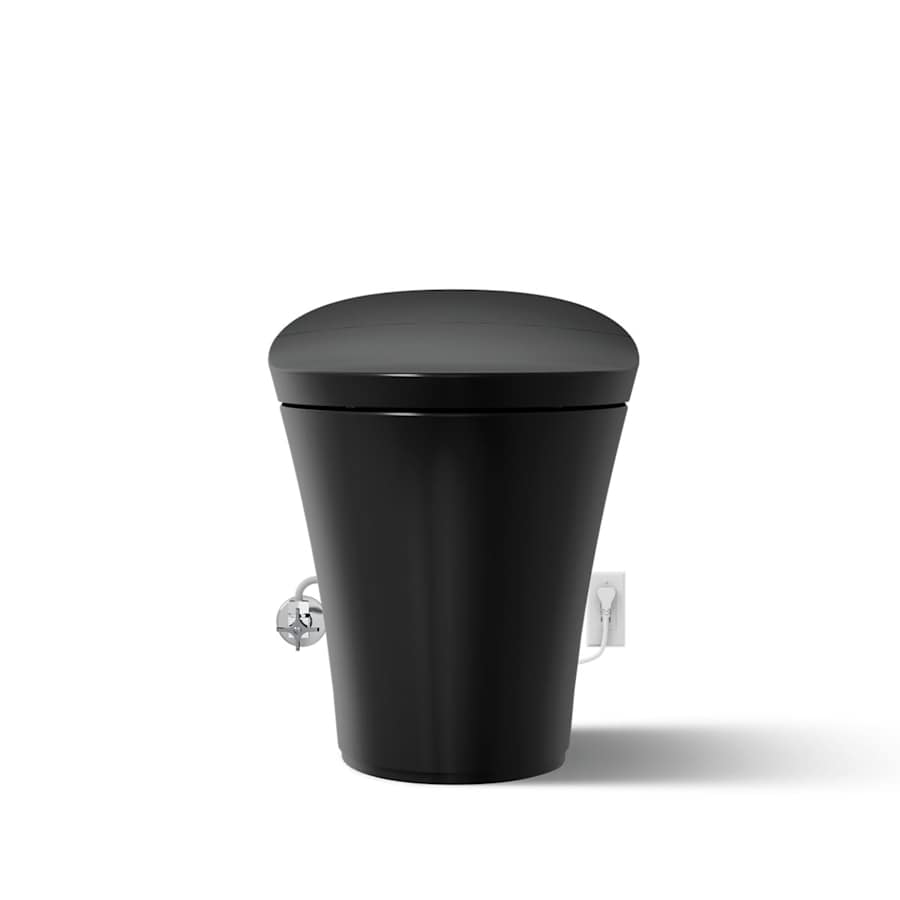

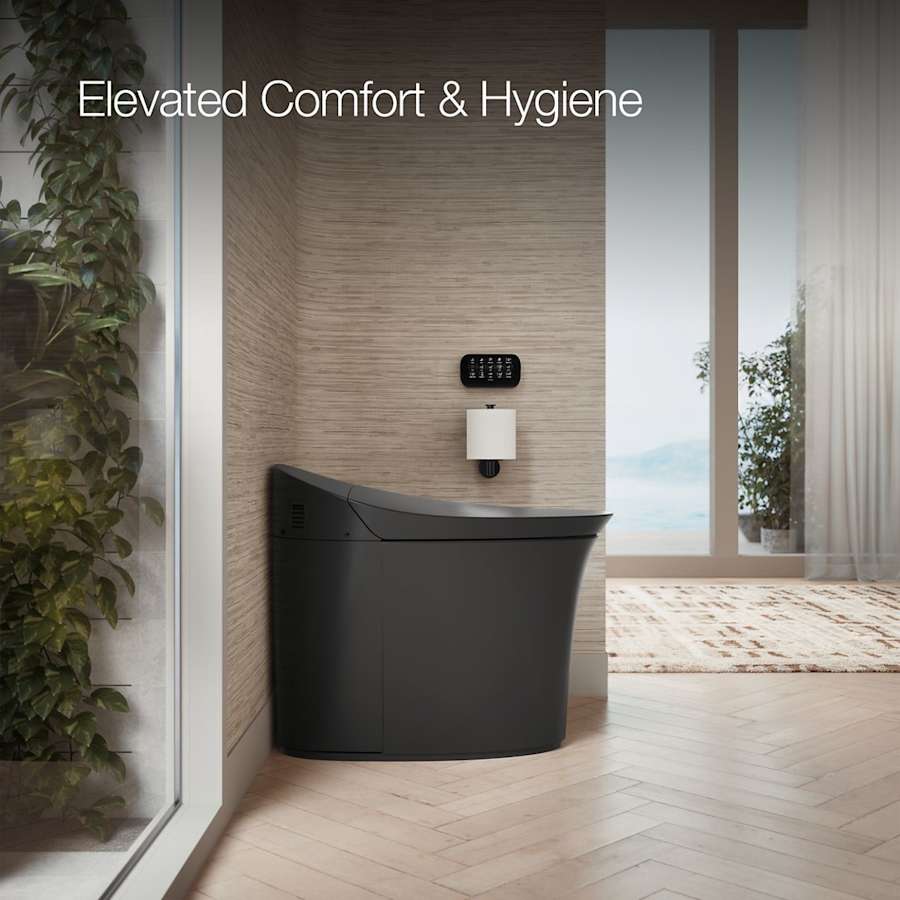

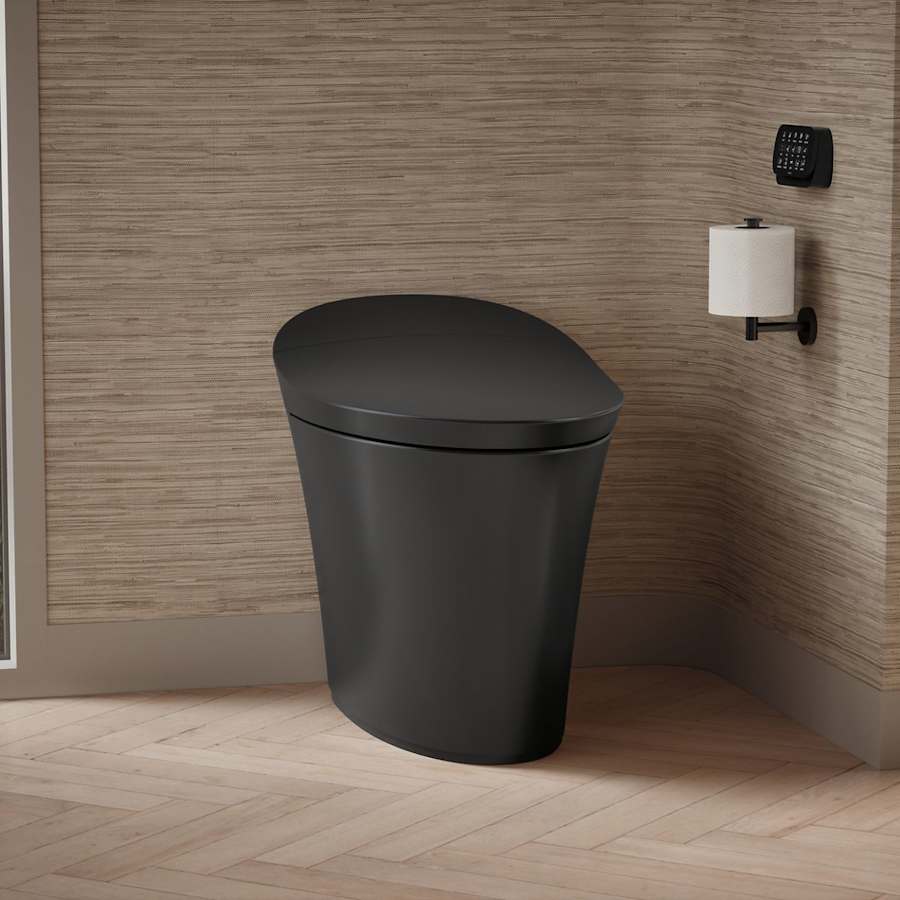

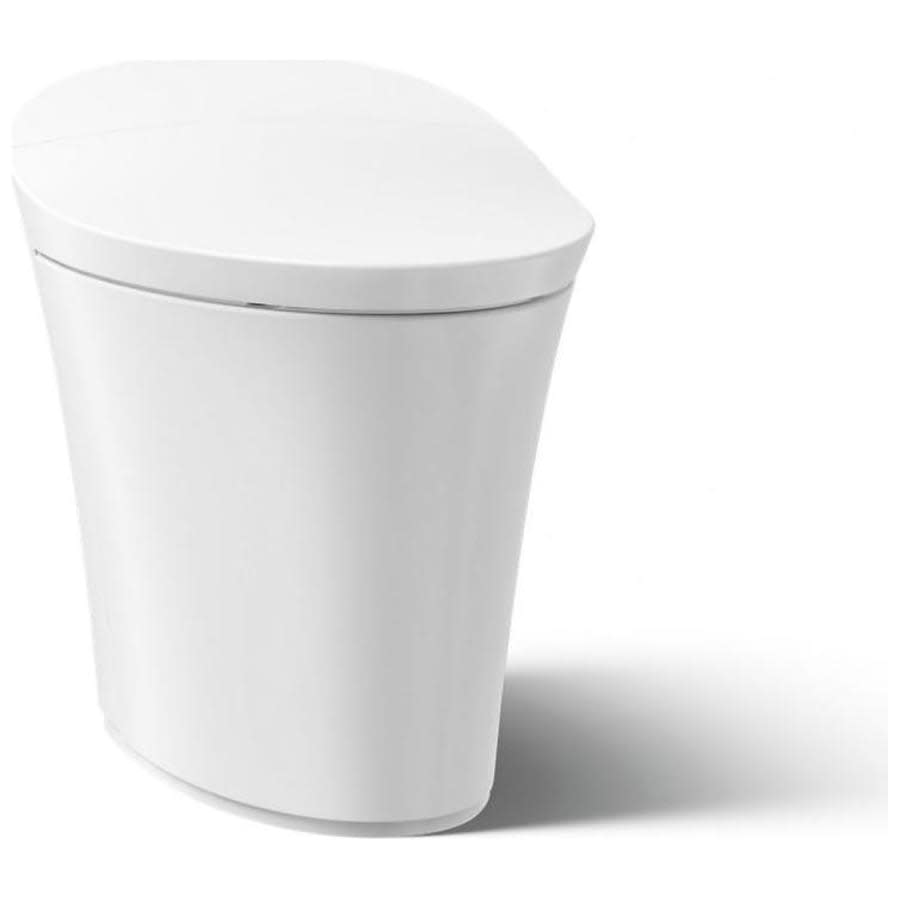

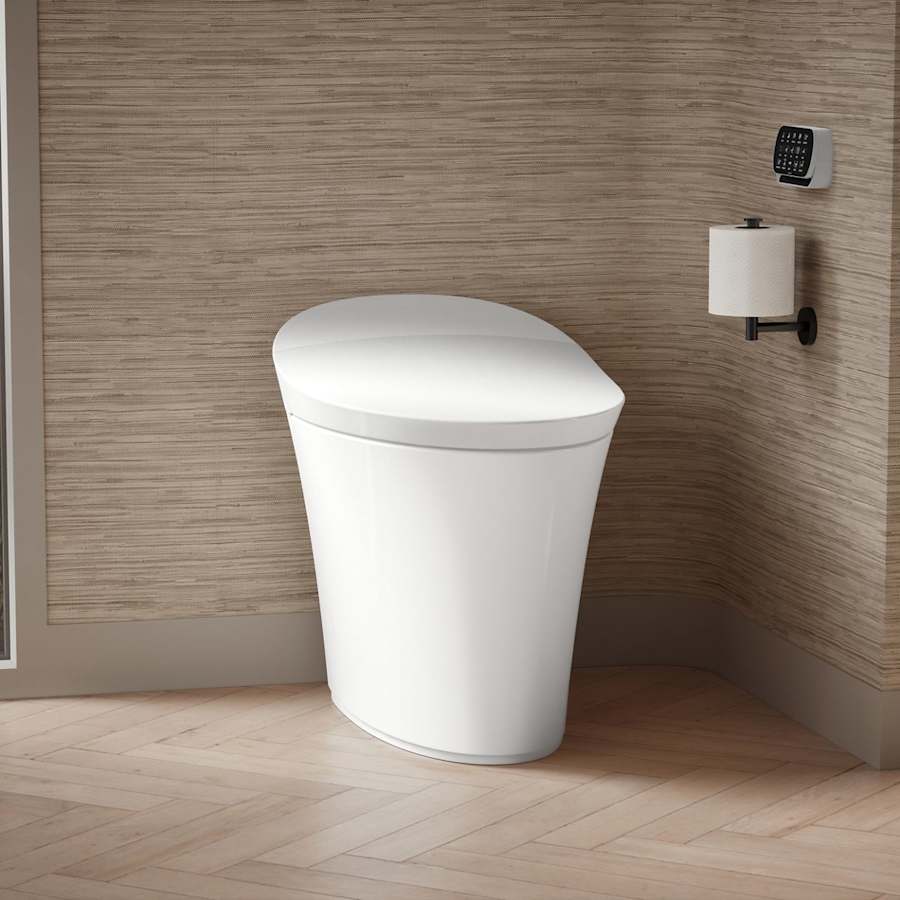

Sculpted with flowing and balanced curves, the Veil® one-piece toilet pairs bold minimalist style with the comfort of personal cleansing. Upgraded to a 17" seating height, this Veil® dual-flush toilet meets ADA code requirements. Pump-assisted flushing delivers peak flush performance every time. A full suite of convenient features includes heated seat, night-light, hands-free opening/closing and automatic flush, plus a touchscreen remote. With emergency backup flushing at the touch of a button, you're always covered in the event of a power outage.

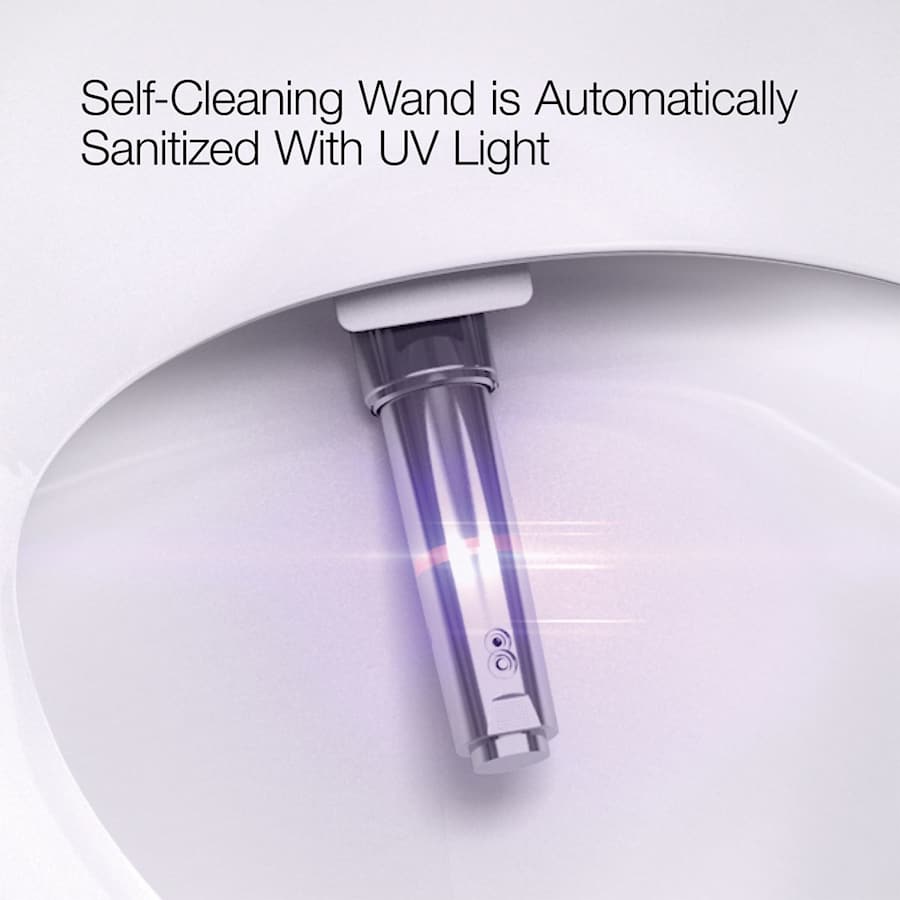

KOHLER UV-light technology automatically cleans the bidet wand every 24 hours, reducing bacteria by 99.9%.*
*Tested against Escherichia coli, Staphylococcus aureus, and Pseudomonas aeruginosa.
Kohler K-5401-PA Features:

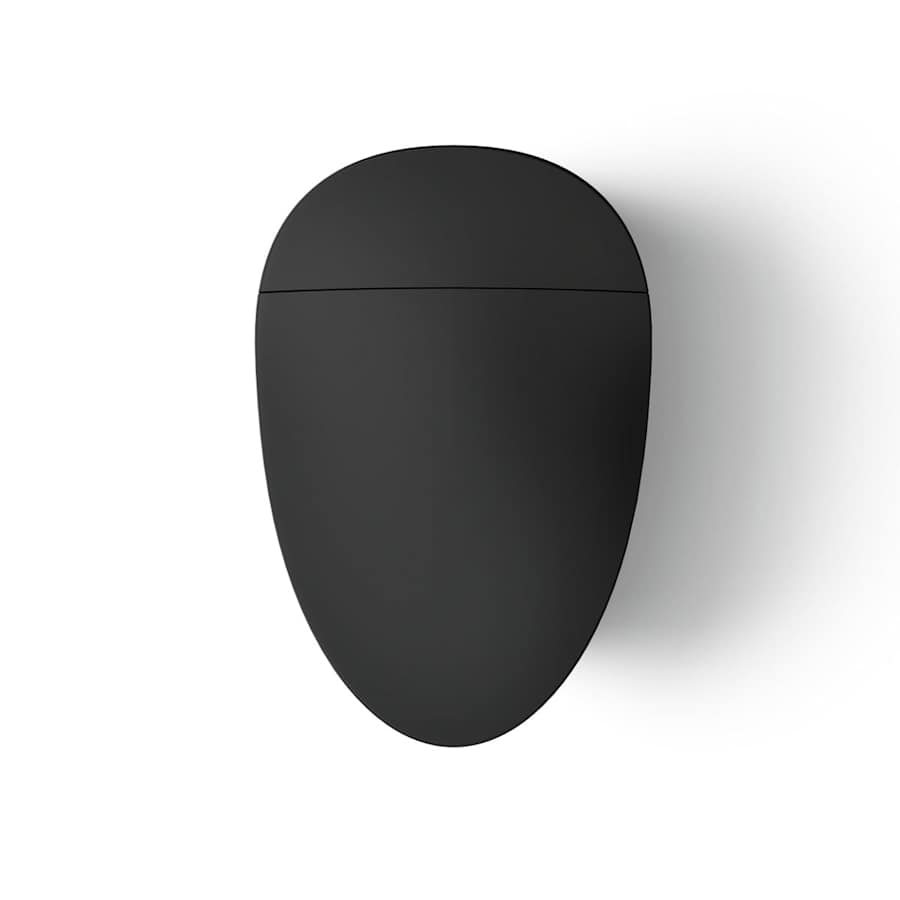

- Compact, streamlined one-piece intelligent toilet with integrated personal cleansing.
 - Elongated bowl offers added room and comfort.
 - Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults.
 - Tankless design with direct water supply.
 - Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions.
 - Front and rear wash modes provide warm water for cleansing.

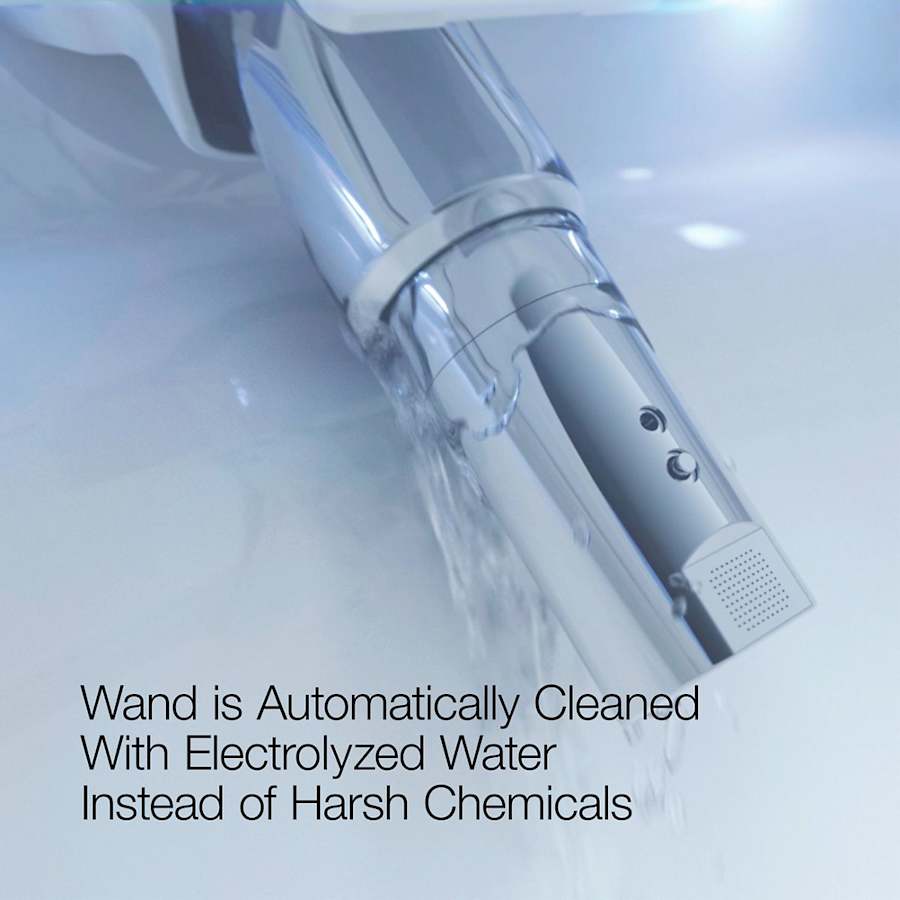

 - Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces.

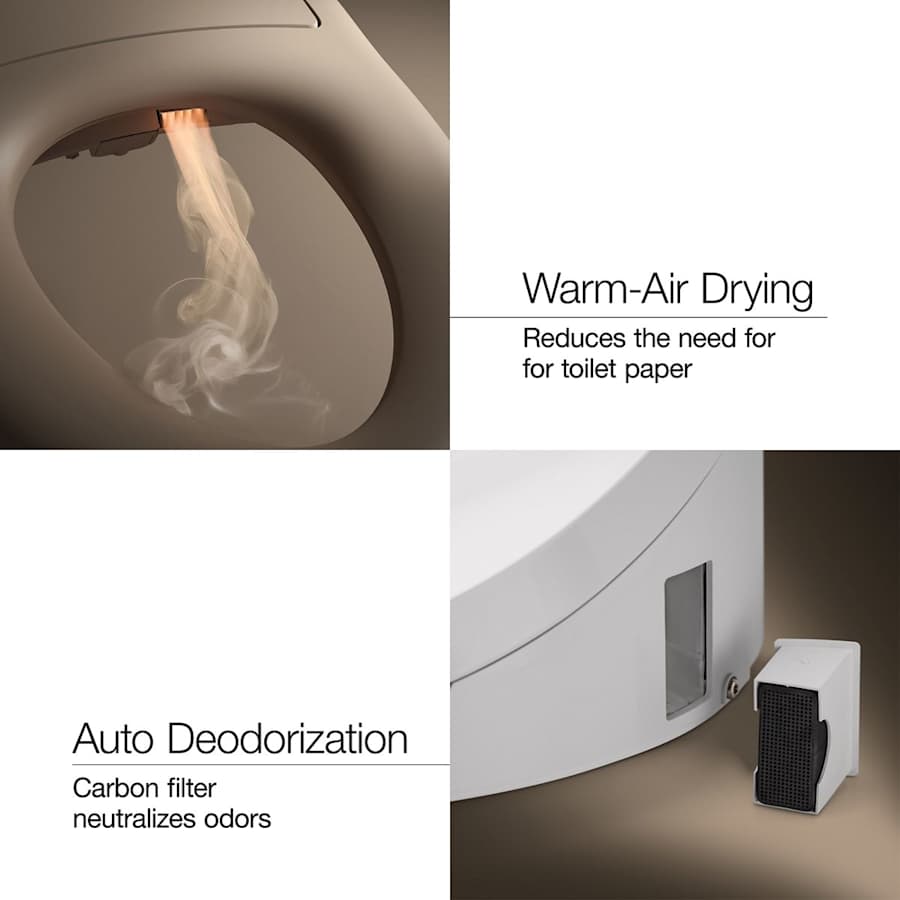

 - Warm-air drying system with adjustable temperature settings.
 - Automatic deodorization system.
 - Heated seat with adjustable temperature settings.

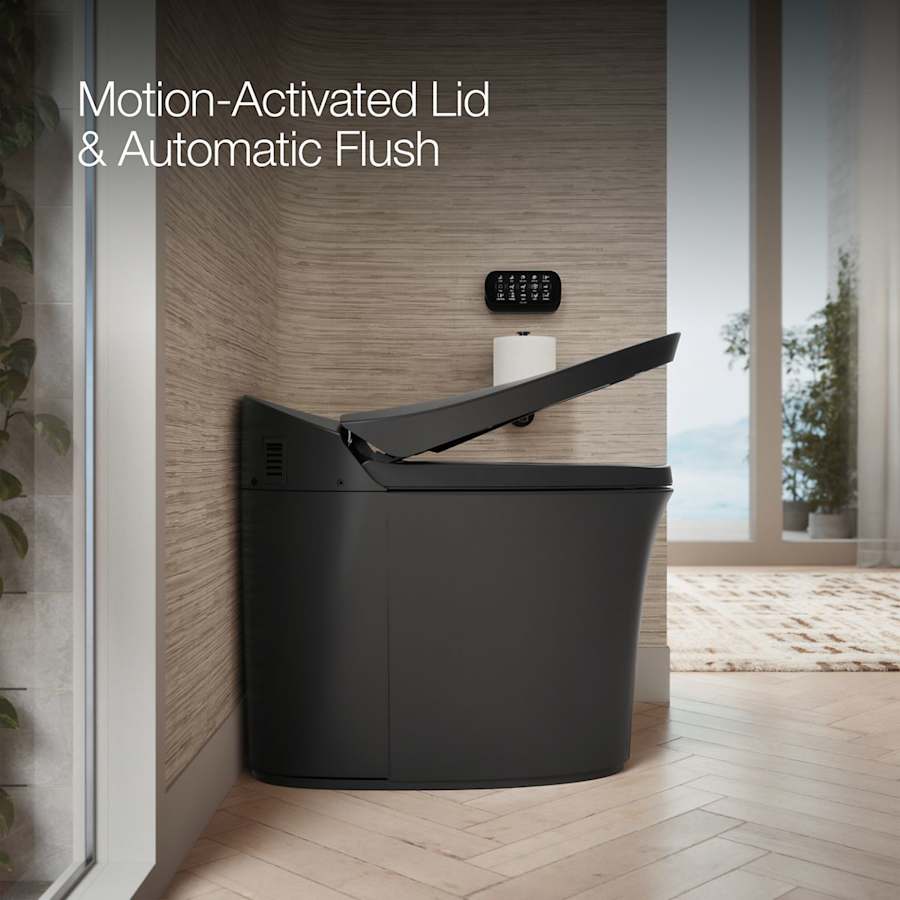

 - Motion-activated, hands-free opening/closing of cover.
 - Quiet-Close⢠elongated seat closes quietly.
 - LED lighting illuminates the bowl to serve as a nightlight.

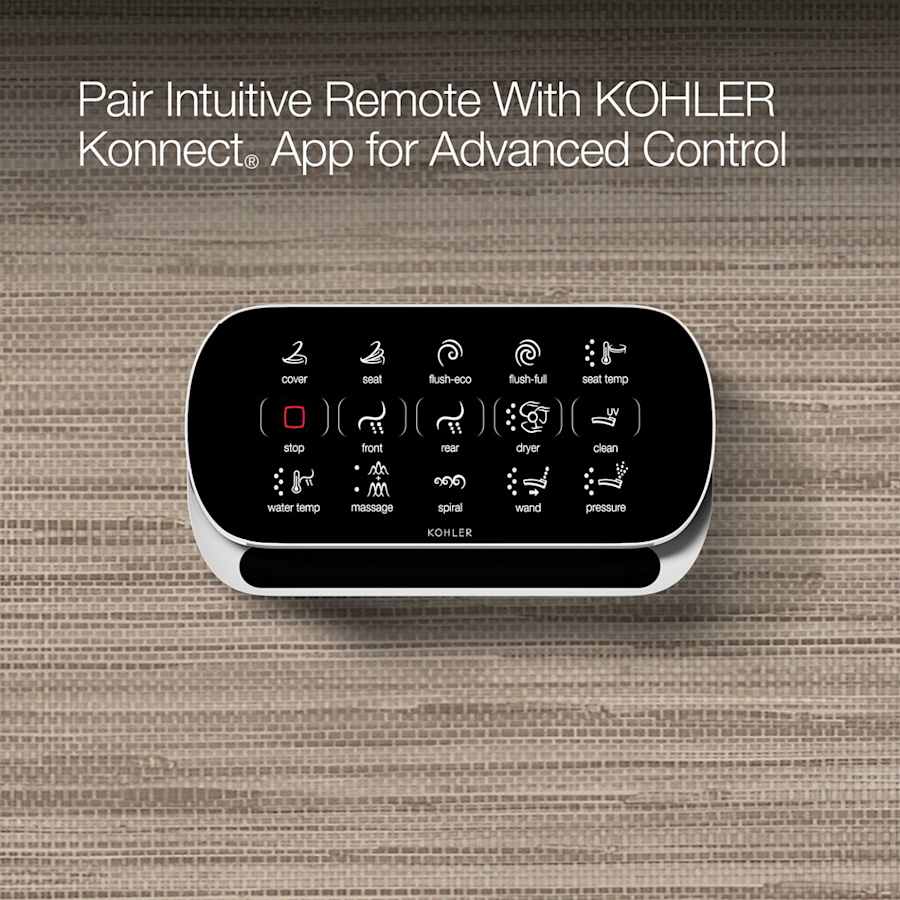

 - English-language touchscreen LCD remote control.

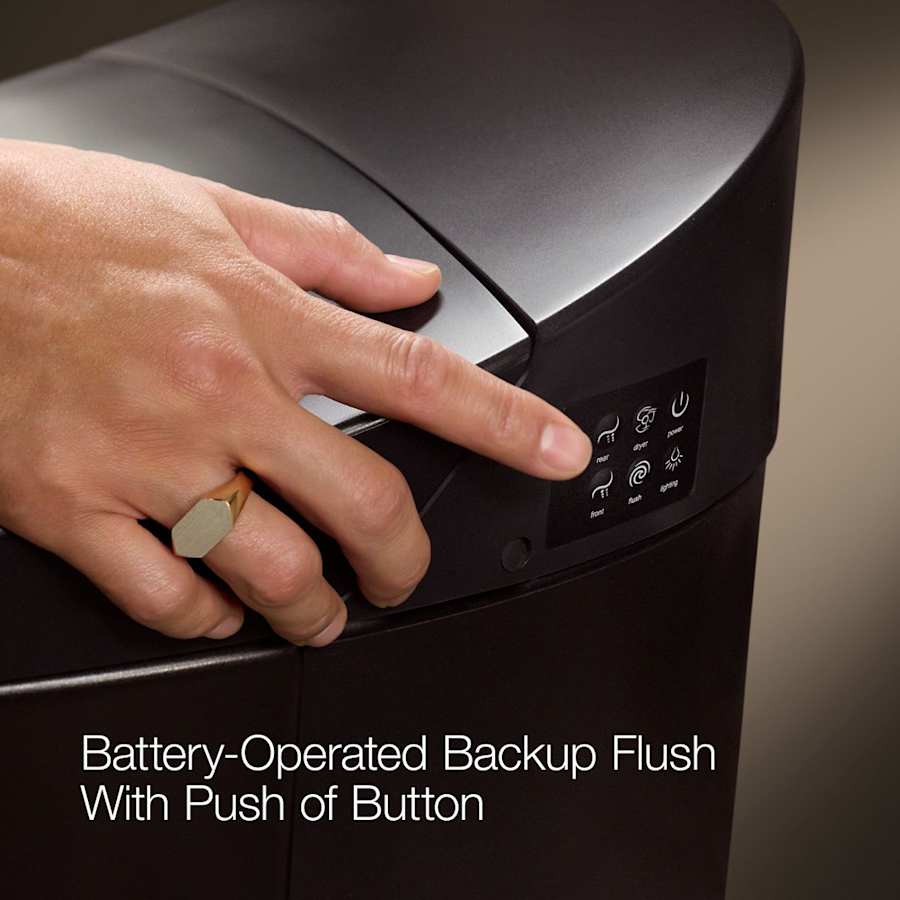

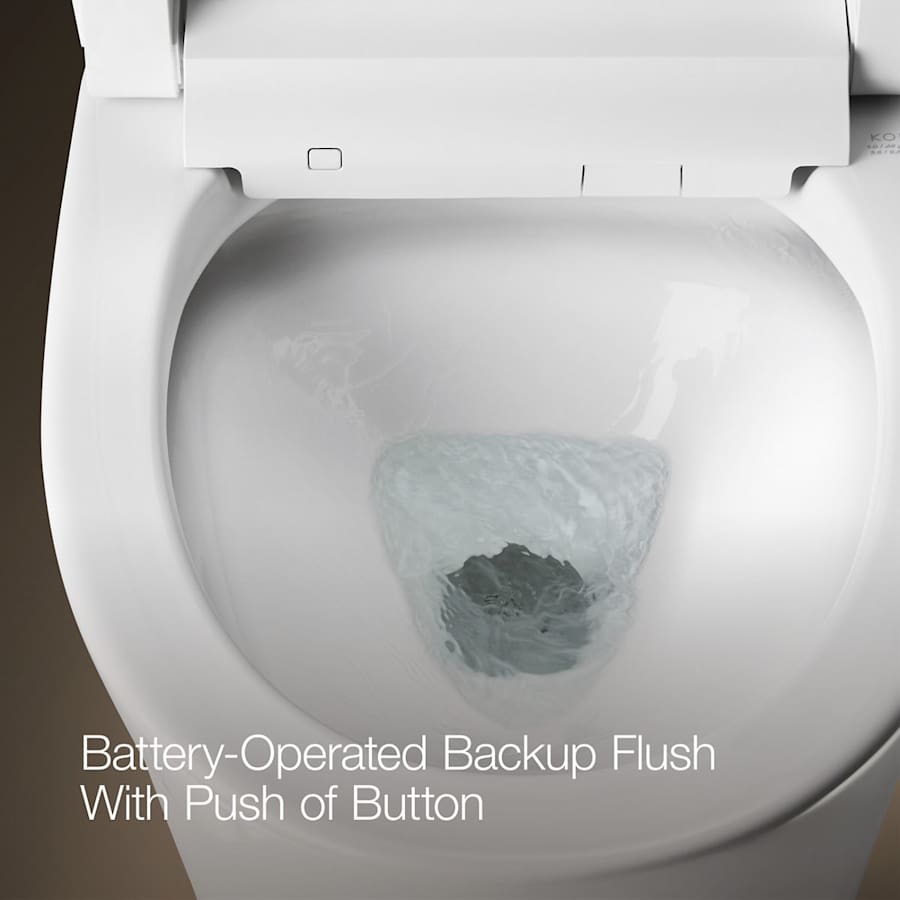

 - Emergency flush supports up to 100 flushes during power outage with simple touch-button activation.
 - Dual flush offers a choice of 0.8 or 1.19 gpf (3.0 or 4.5 lpf).

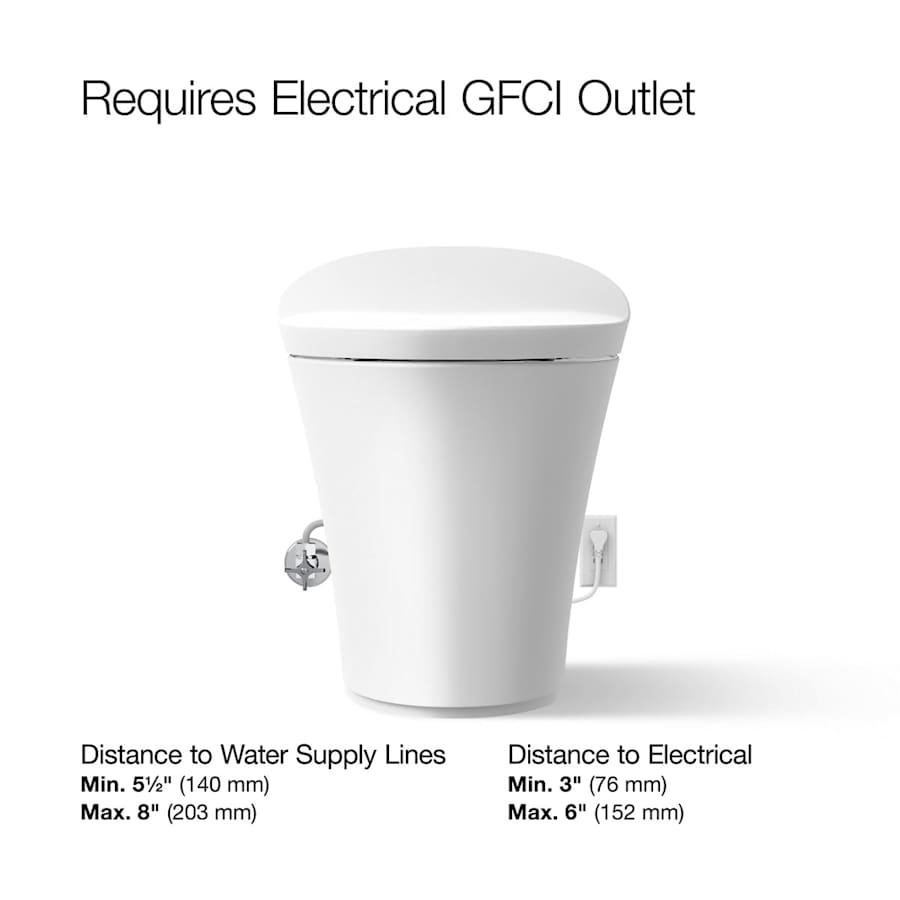

 - Includes: Complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and remote control.
 - Covered under Kohler's 3 year limited warranty

Kohler K-5401-PA Specifications:
- Overall Height: 21-7/16â (bottom of the base to the highest point on the toilet)
 - Overall Depth: 29-3/8â (furthest point back to front of toilet)
 - Overall Width: 16-3/8â (furthest point left to furthest point on the right)
 - Bowl Height: 16-1/8â (floor to the top of the bowl)
 - Flow Rate: 0.8/1.28 (gallons-per-flush)
 - Water Area: 7-15/16" x 5-5/8" (inner bowl dimensions length x width)
 - Rough-In: 12â
 - Distance Between Toilet Seat Installation Holes: 5-1/2â

Dimensions and Measurements
- Bowl Height
 - 16.125 in.
 - Depth
 - 26.125 in.
 - Gallons Per Flush
 - 0.8, 1.28
 - Height
 - 21.4375 in.
 - Hinge Center to Center
 - 5.5 in.
 - Product Weight
 - 114.6 lbs.
 - Rough In
 - 12 in.
 - Trapway
 - 1.9375 in.
 - Width
 - 17.25 in.

Included Components
- Bidet Seat Included
 - Yes
 - Seat Included
 - Yes

Characteristics and Features
- Bowl Shape
 - Elongated
 - Configuration
 - One Piece
 - Design Features
 - Dual Flush, Concealed Trapway, Soft Close, Chair Height, Low Profile
 - Electronic
 - Yes
 - Installation Type
 - Floor Mounted
 - Seat Front
 - Closed
 - Tech Features
 - Heated Seat
 - Theme
 - Modern

Warranty and Product Information
- ADA
 - Yes
 - ANSI Certification
 - A117.1
 - ASME Code
 - A112.19.2
 - Certifications
 - ANSI, ASME, CSA
 - Collection
 - Smart Toilets, Veil
 - Country Of Origin
 - China
 - CSA Code
 - B45.1
 - Manufacturer Warranty
 - 3 Year Limited
