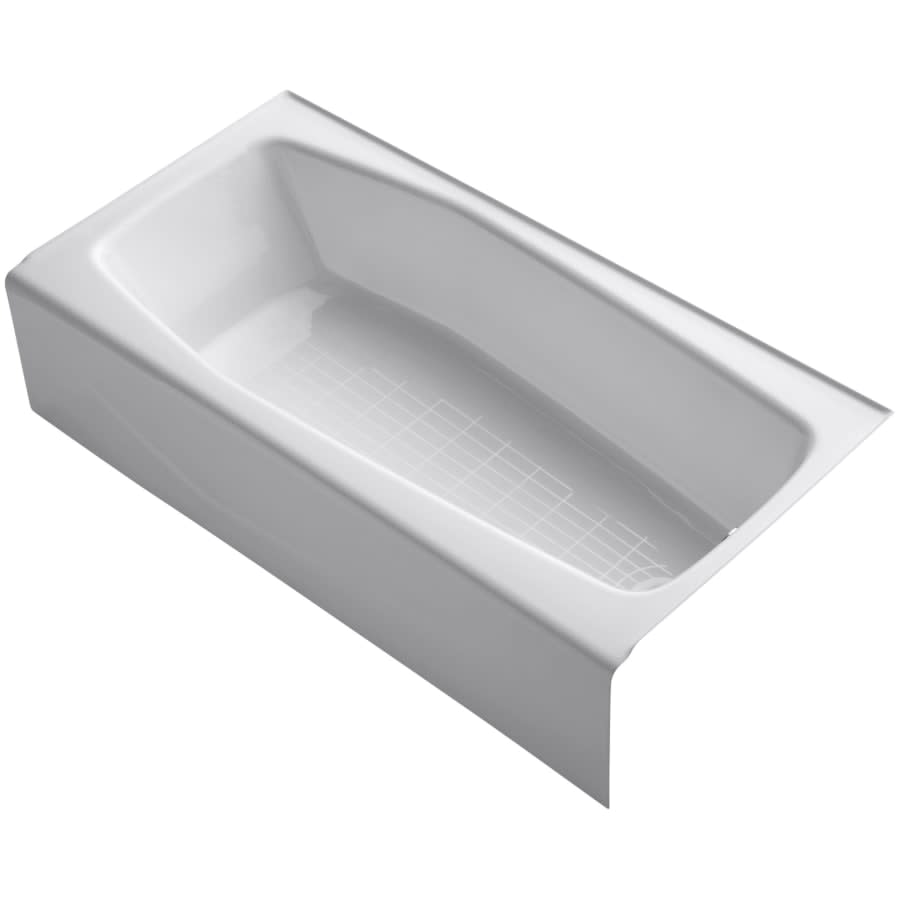

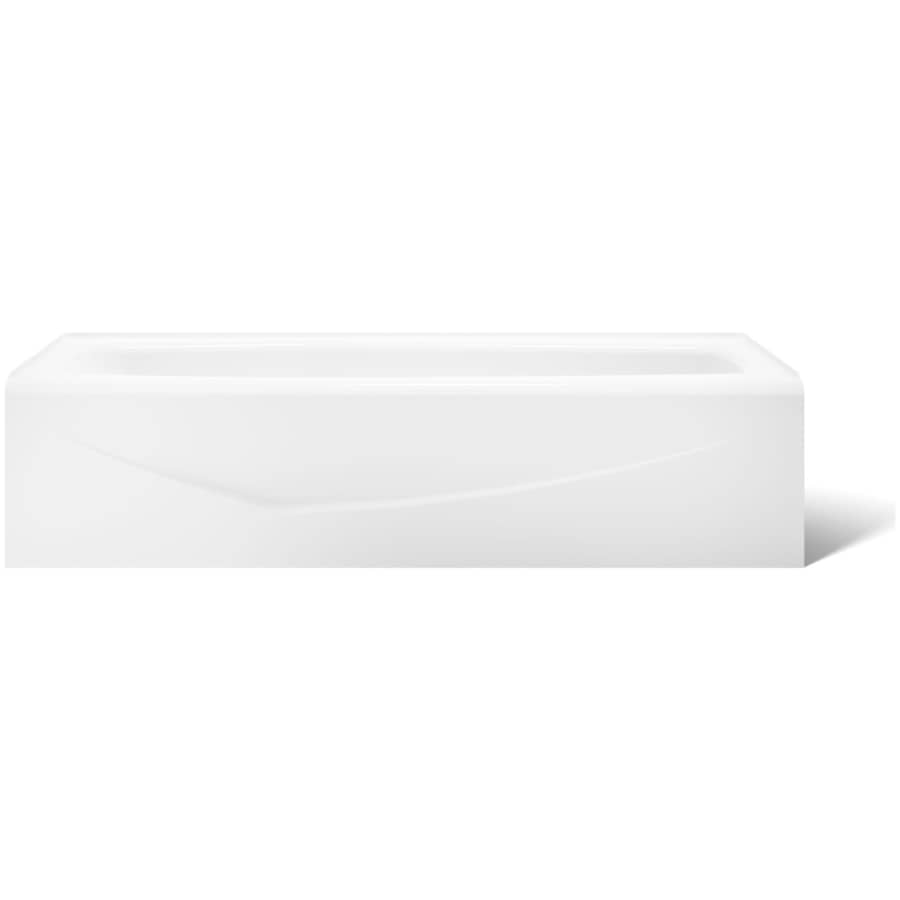

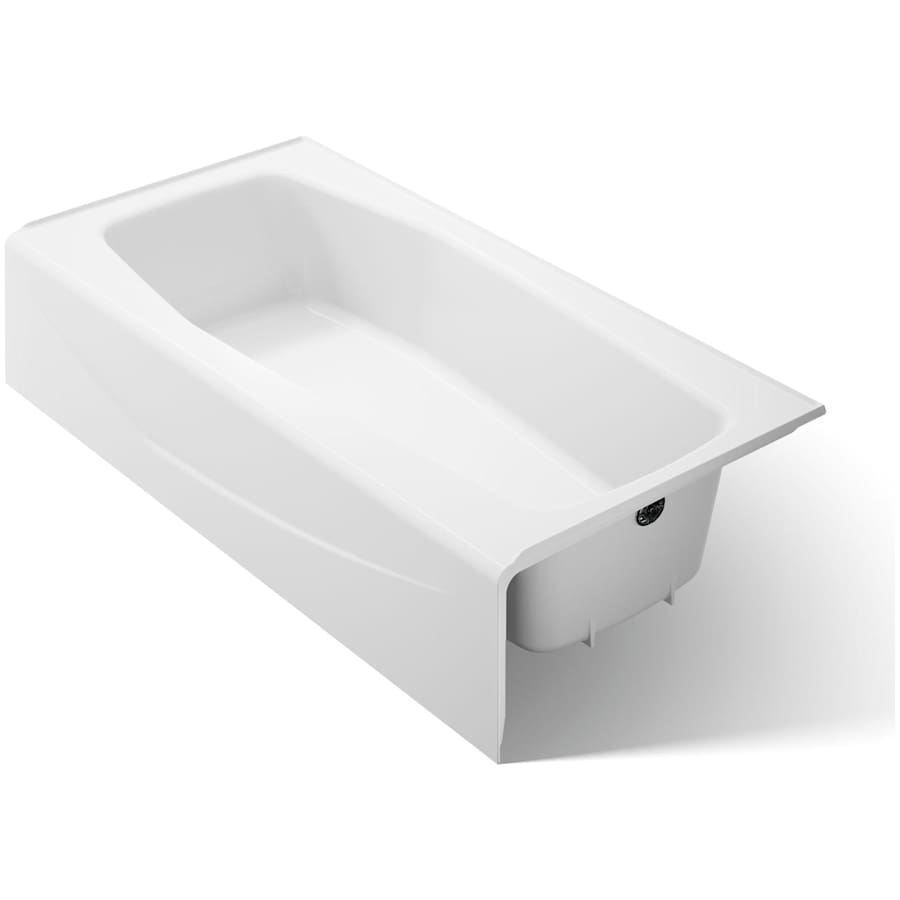

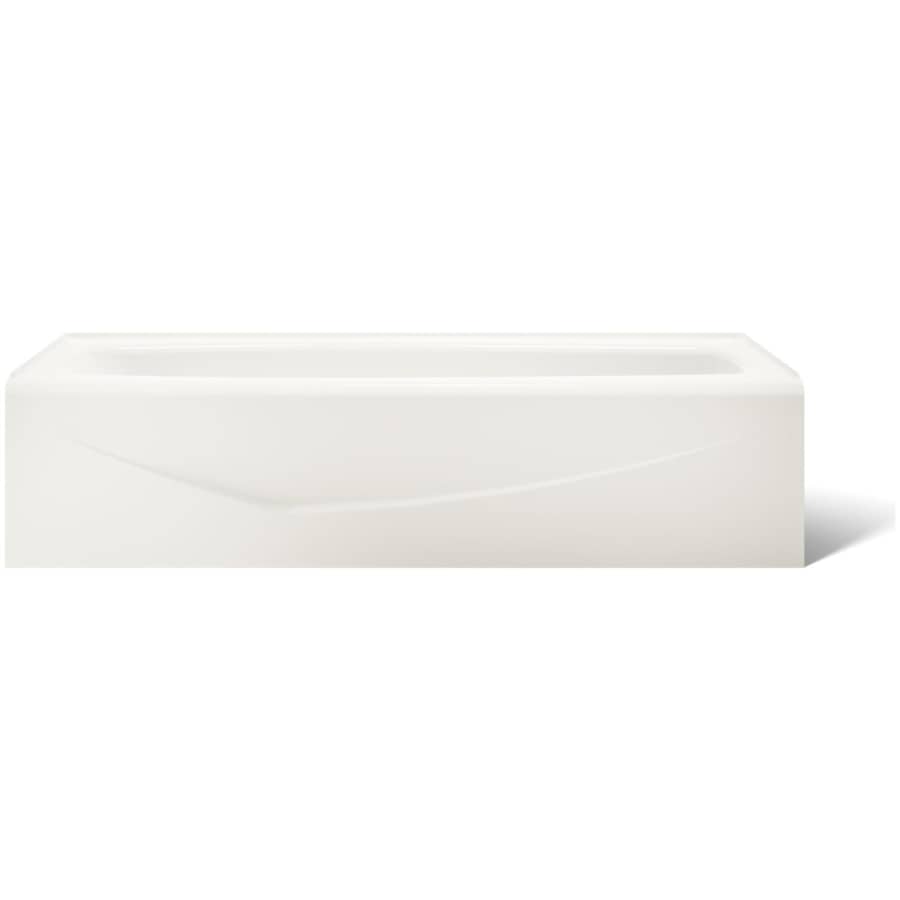

Villager Collection 60" Cast Iron Soaking Bathtub for Three Wall Alcove Installations with Right Hand Drain

Villager

Functional design and Kohler styling, the Villager is our most popular bath. The integral apron allows for quick installation. This model features a right-hand drain. Safeguard slip-resistant surface enhances safety.

Kohler K-716 Features:

• Kohler's cast iron components carry a limited lifetime warranty

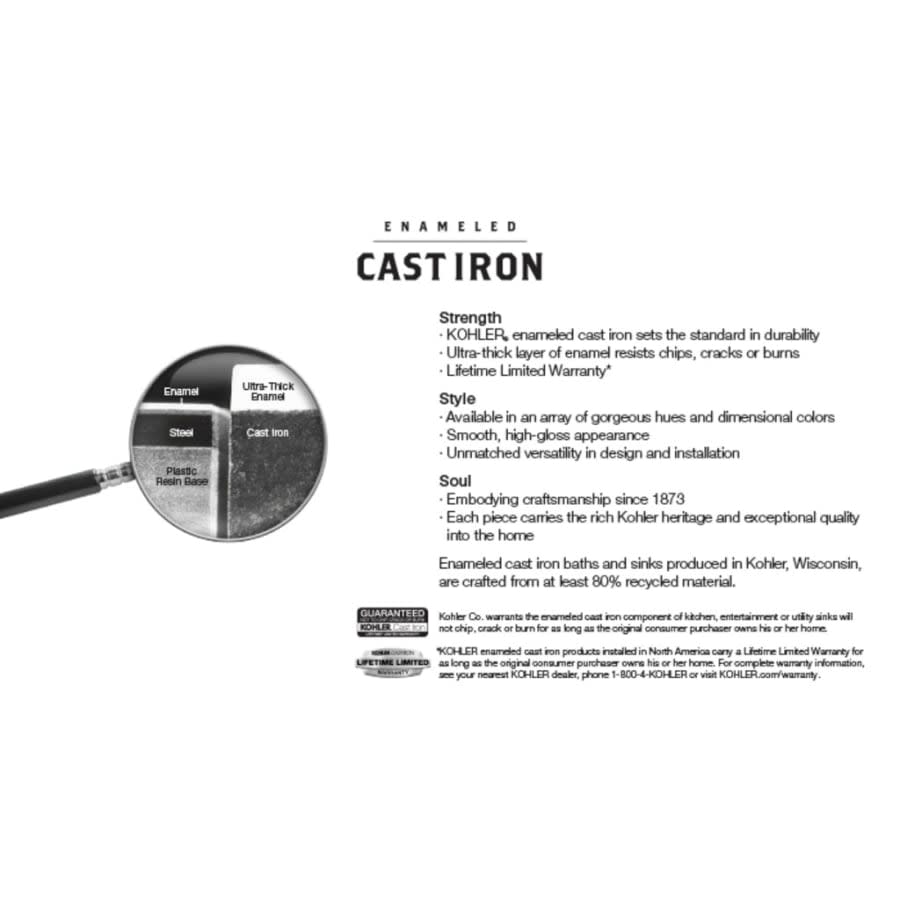

• Tub is constructed from Enameled Cast Iron combining strength with durability

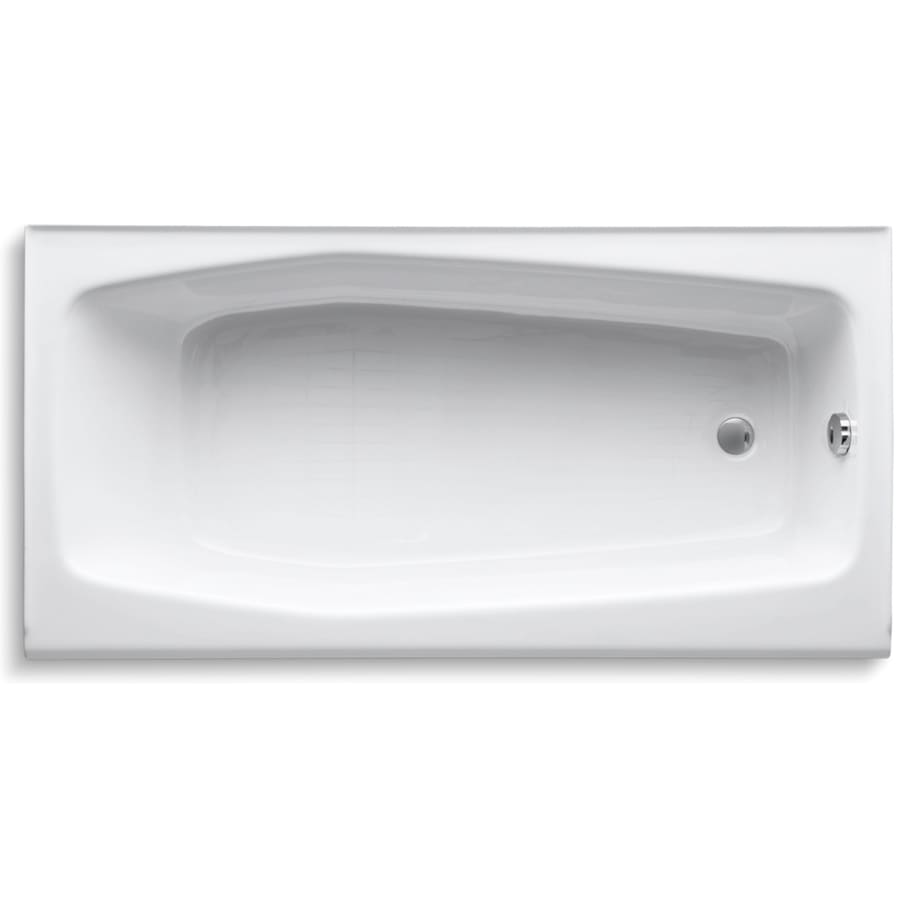

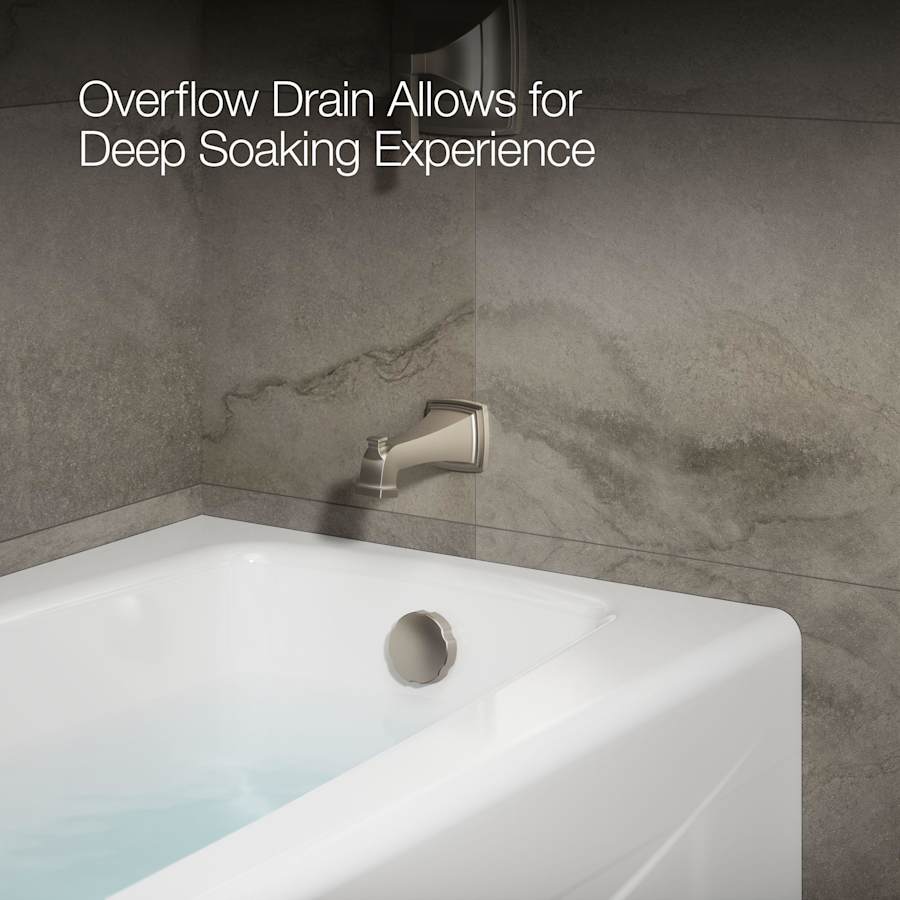

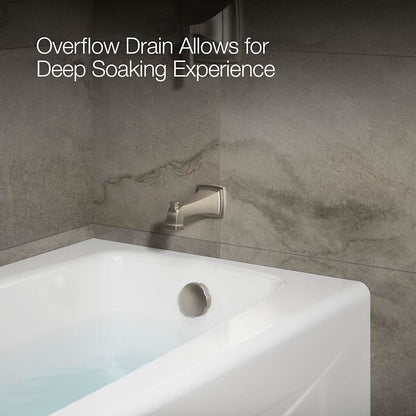

• Right drain with round overflow

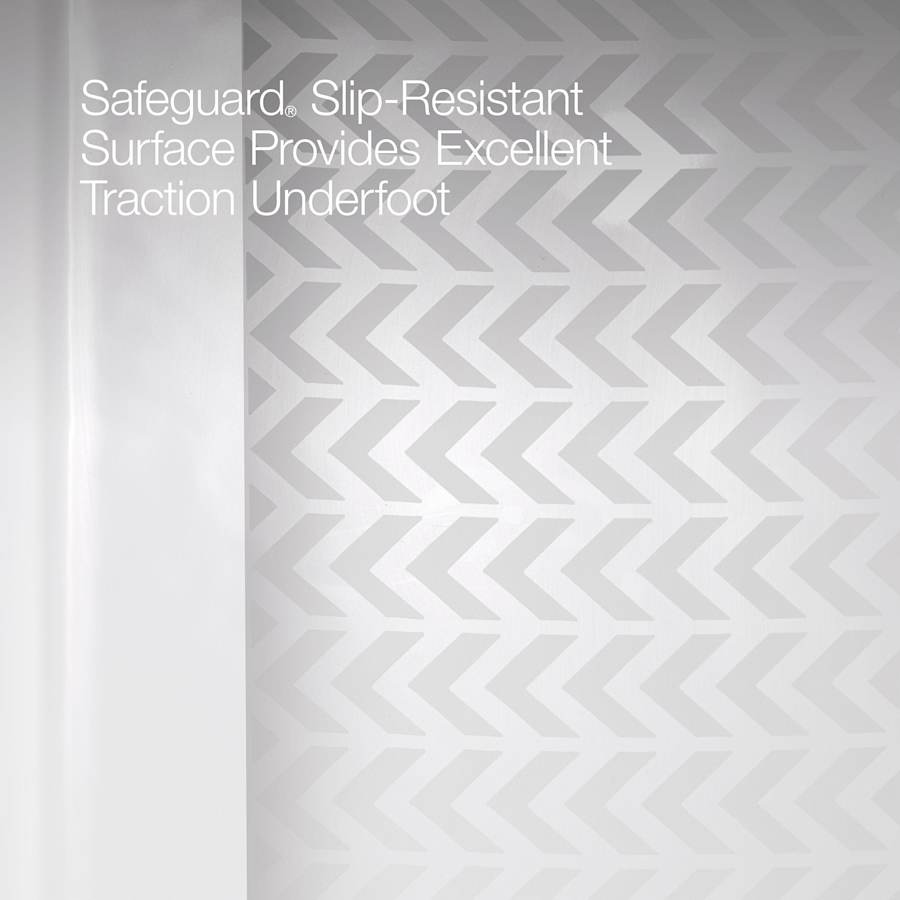

• Textured slip-resistant bottom

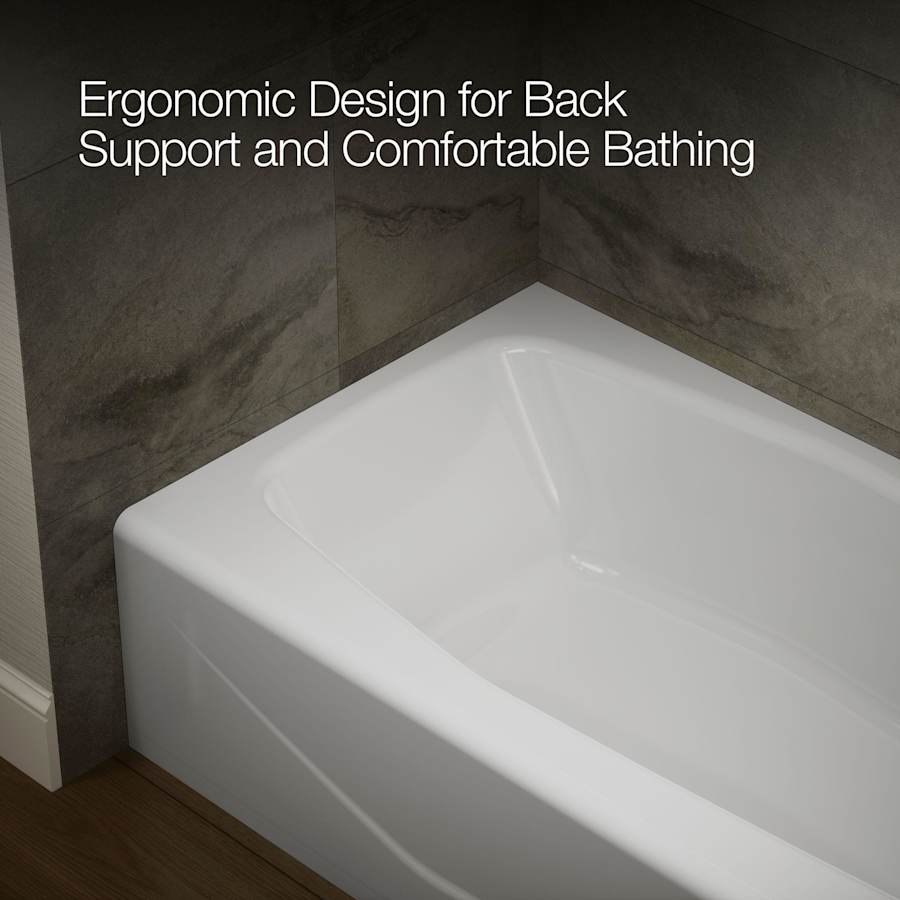

• With its functional design and straight forward styling, the Villager is the most popular of the Kohler baths

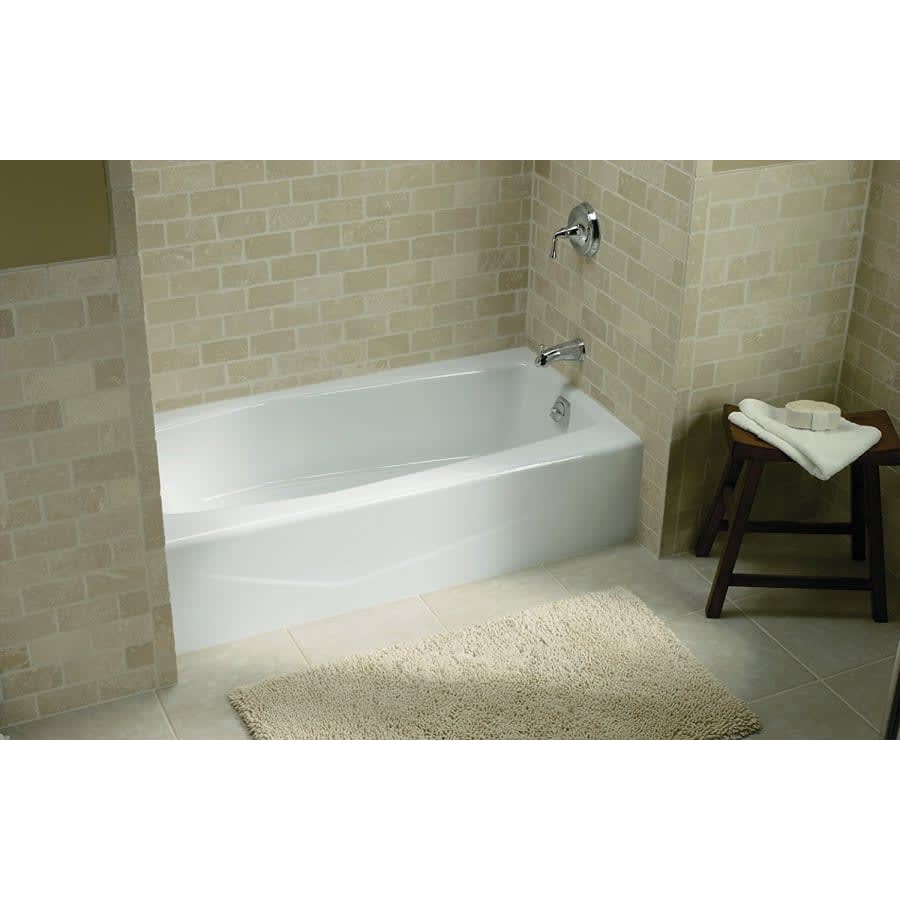

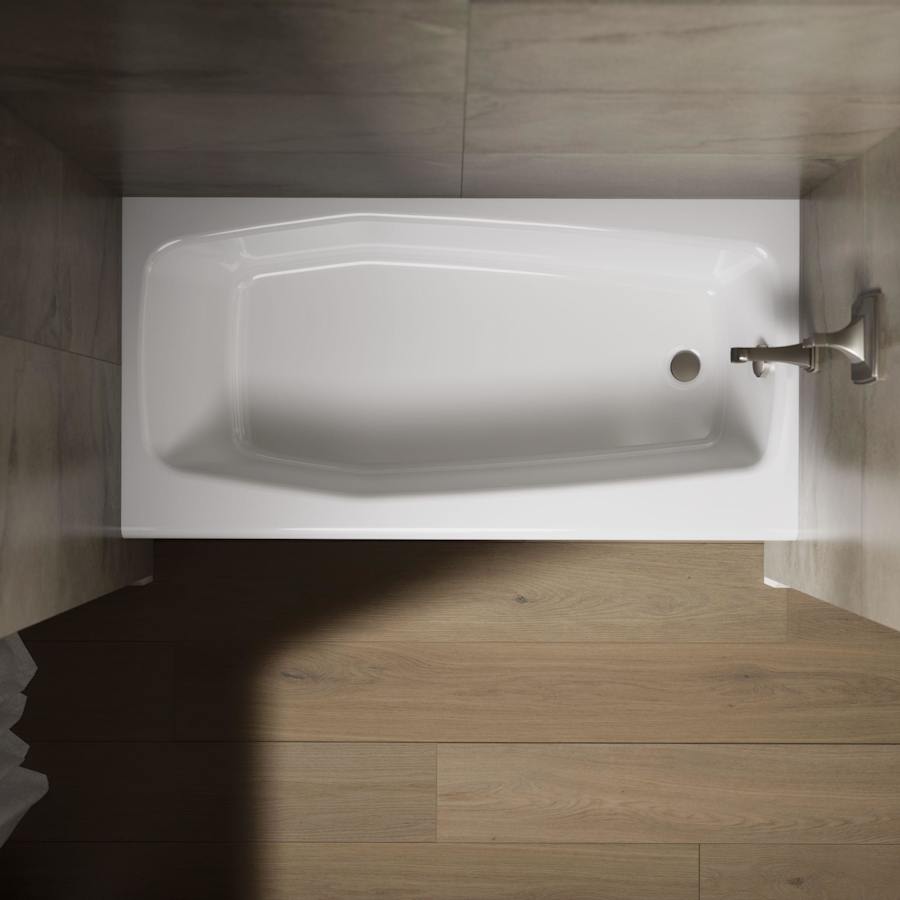

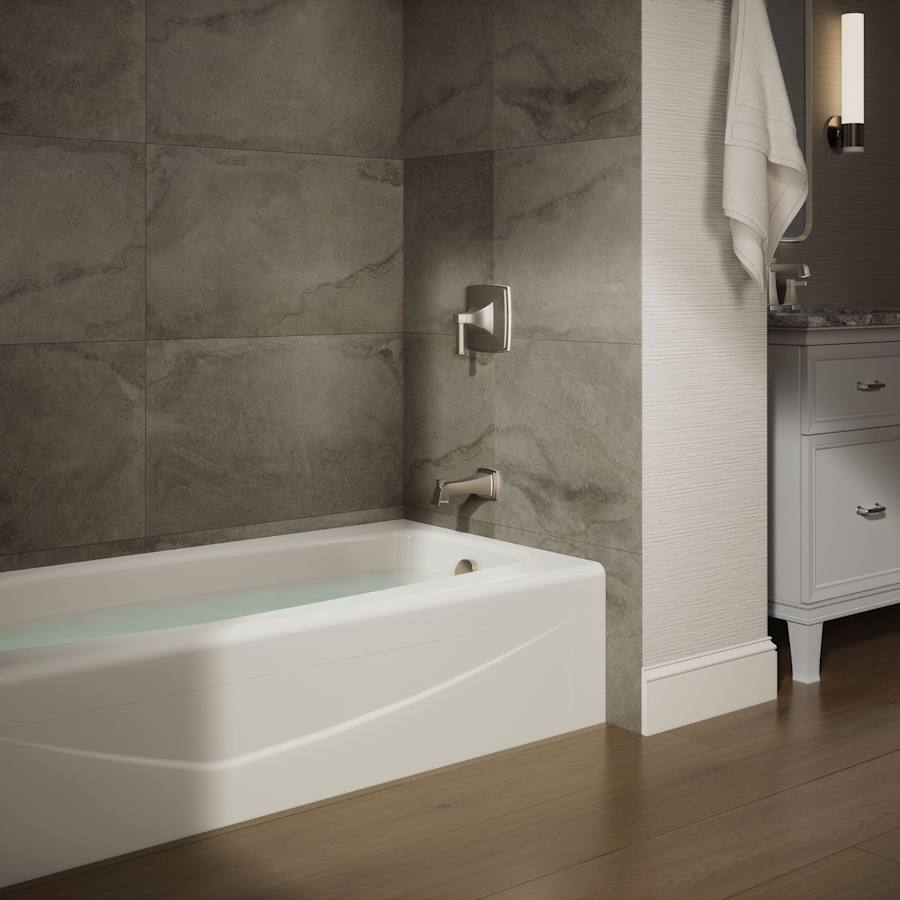

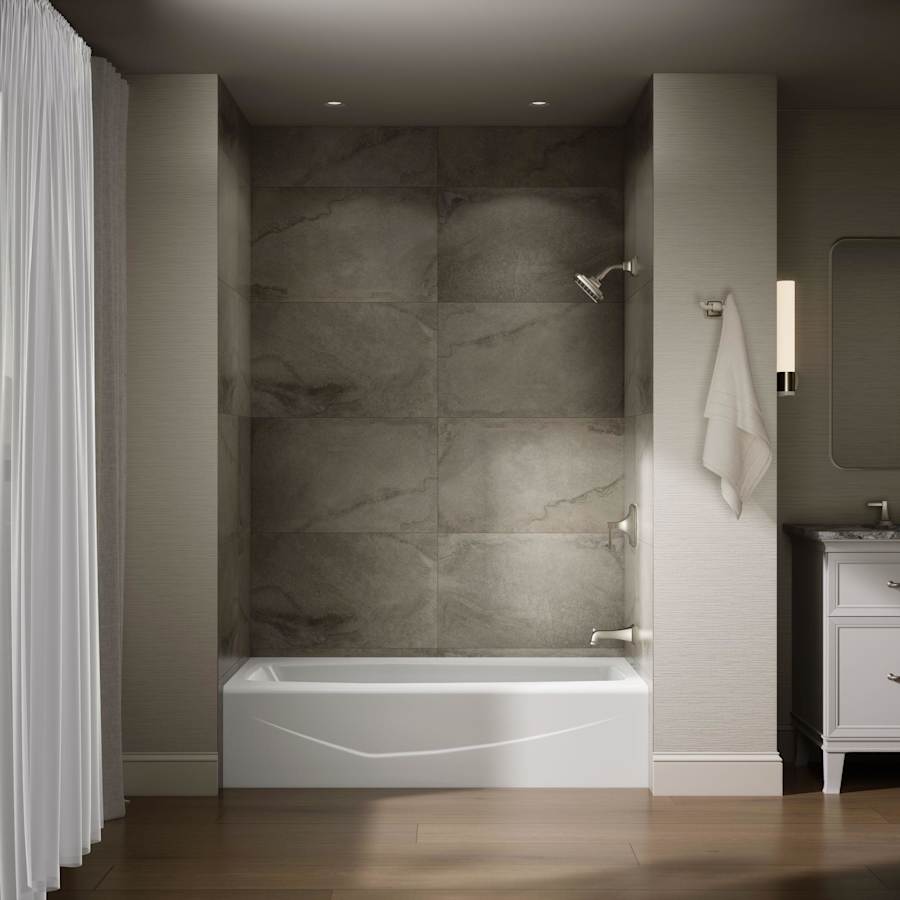

• Installs in a Three-wall Alcove configuration

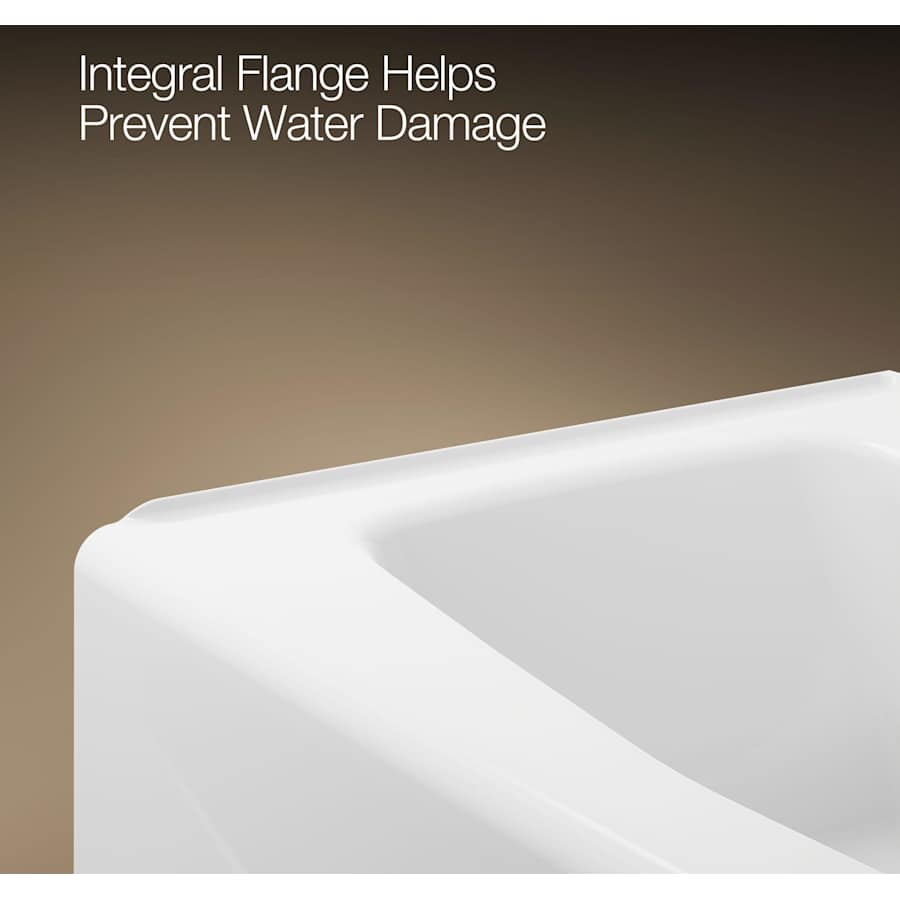

• Integrated tile flange
• ADA compliant - complies with the standards set forth by the American's with Disabilities Act
• Product Meets or Exceeds the Following Codes and Standards: ADA, ICC/ANSI, CSA, OBC, ASME

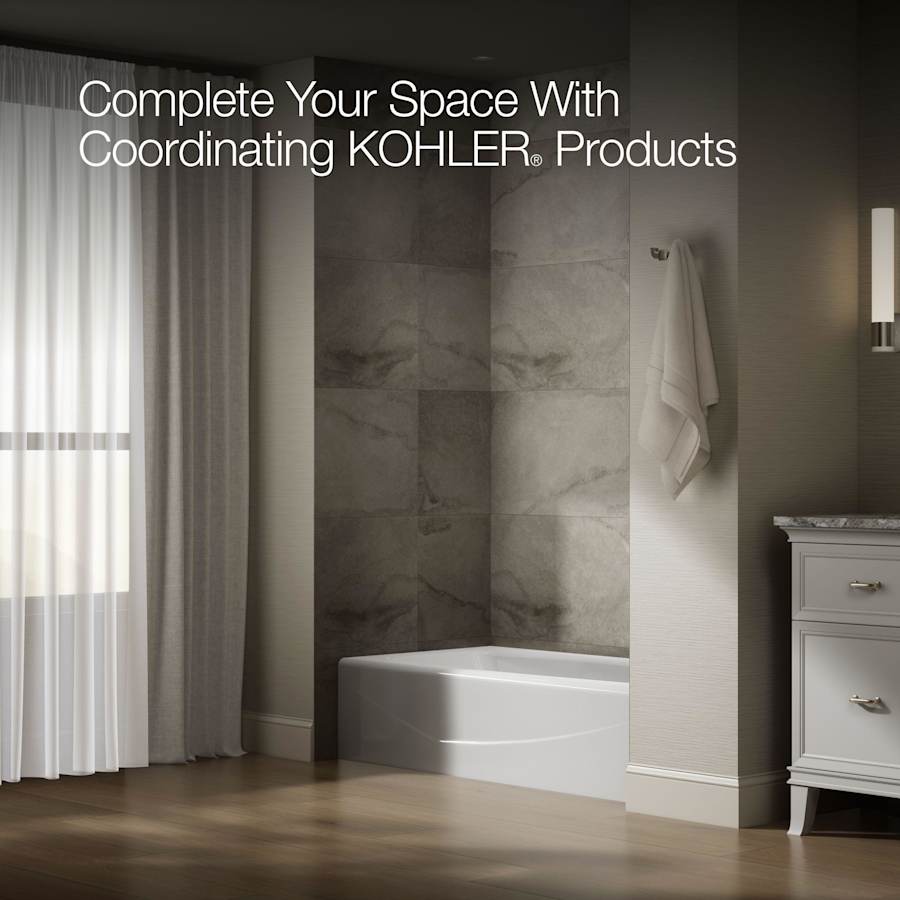

• Pair this bath with other products from the Villager Collection for a coordinated elegant look in the bathroom

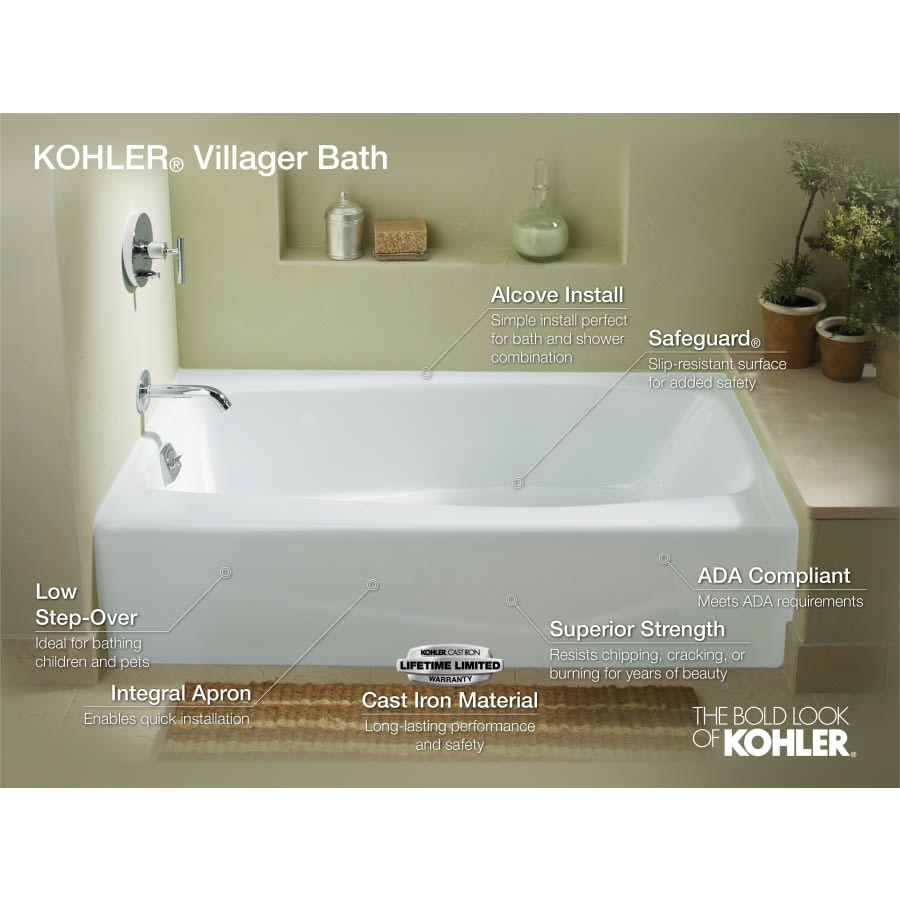

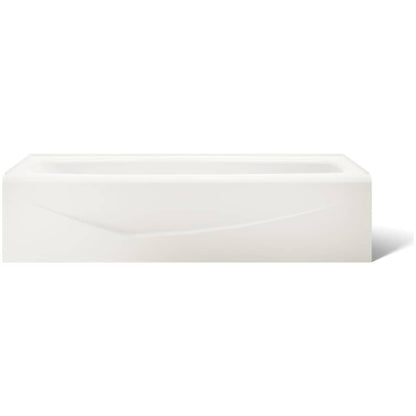

• Integrated apron front
• Made proudly in the USA

Material:

• Kohler enameled cast iron

Kohler K-716 Specifications:

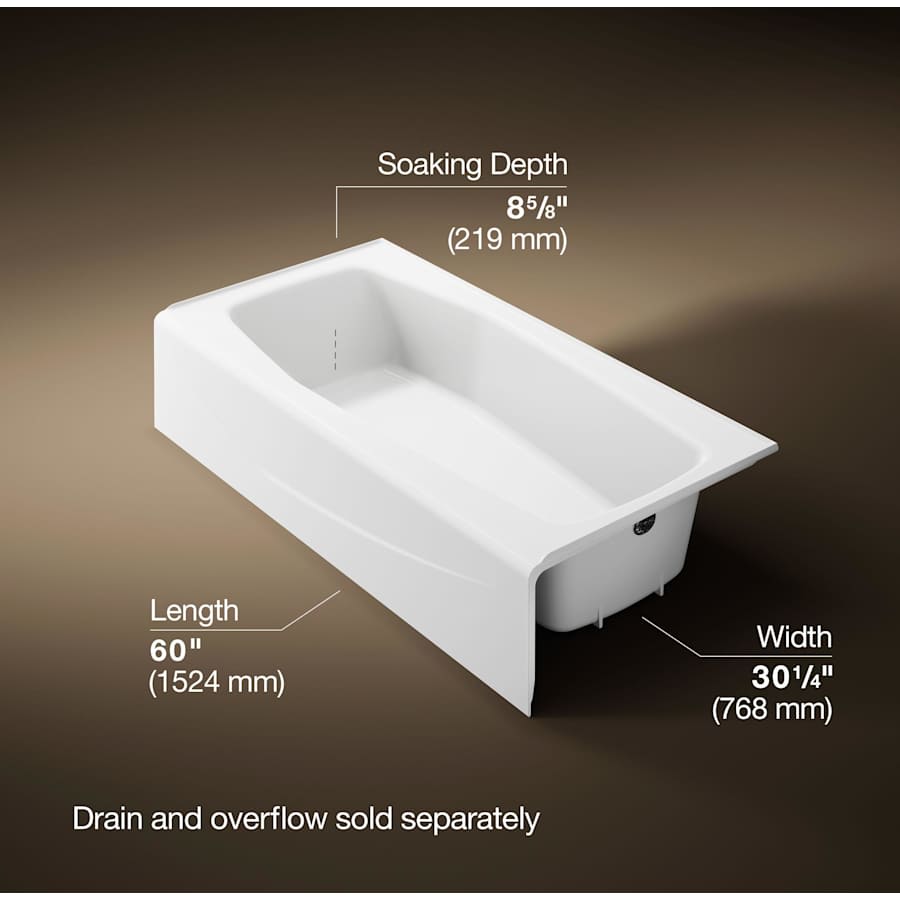

• Overall Height: 14" (measured from the top of tub rim to the bottom of basin)
• Overall Width: 30-1/4" (measured from back most to front most point on outer rim)
• Overall Length: 60" (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 22" (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 45" (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 24" (back to front measurement of the top of basin walls)
• Basin Length (Top): 55" (right to left measurement of the top of the basin walls)
• Water Depth: 8-5/8" (depth of water at tub's maximum capacity)
• Maximum Water Capacity: 33-gallons
• Drain Connection: 1-1/2"

Kohler K-716 Installation:

• Alcove
• Integral flange
• Right drain
