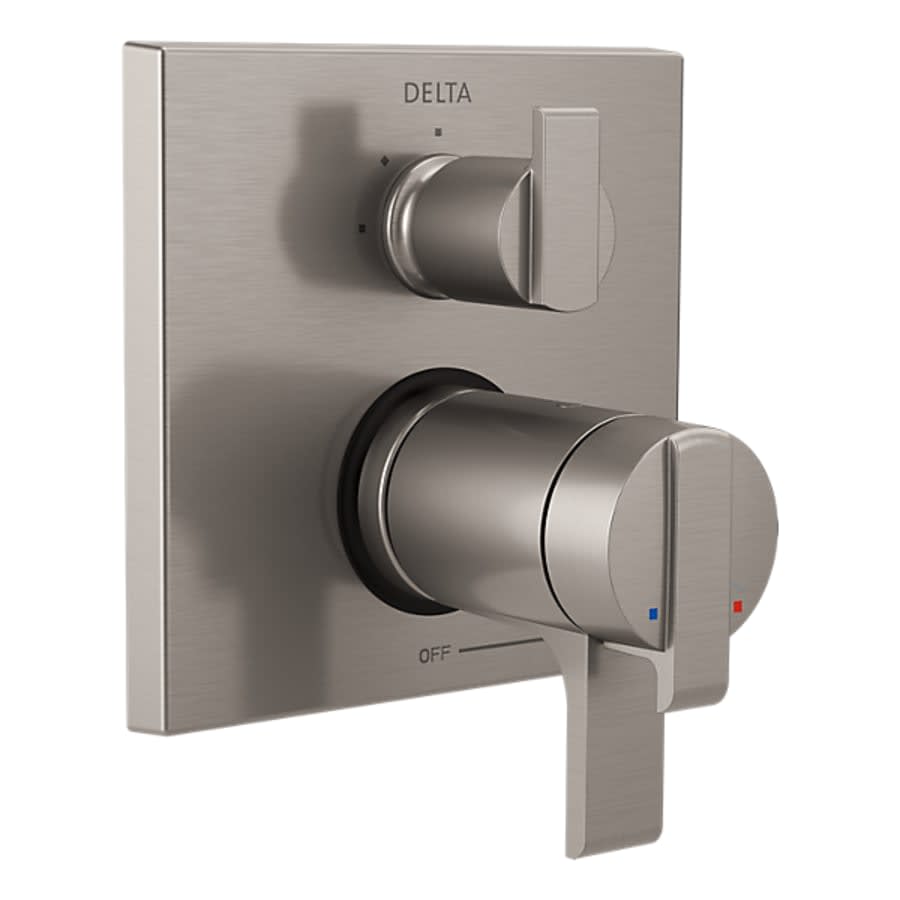

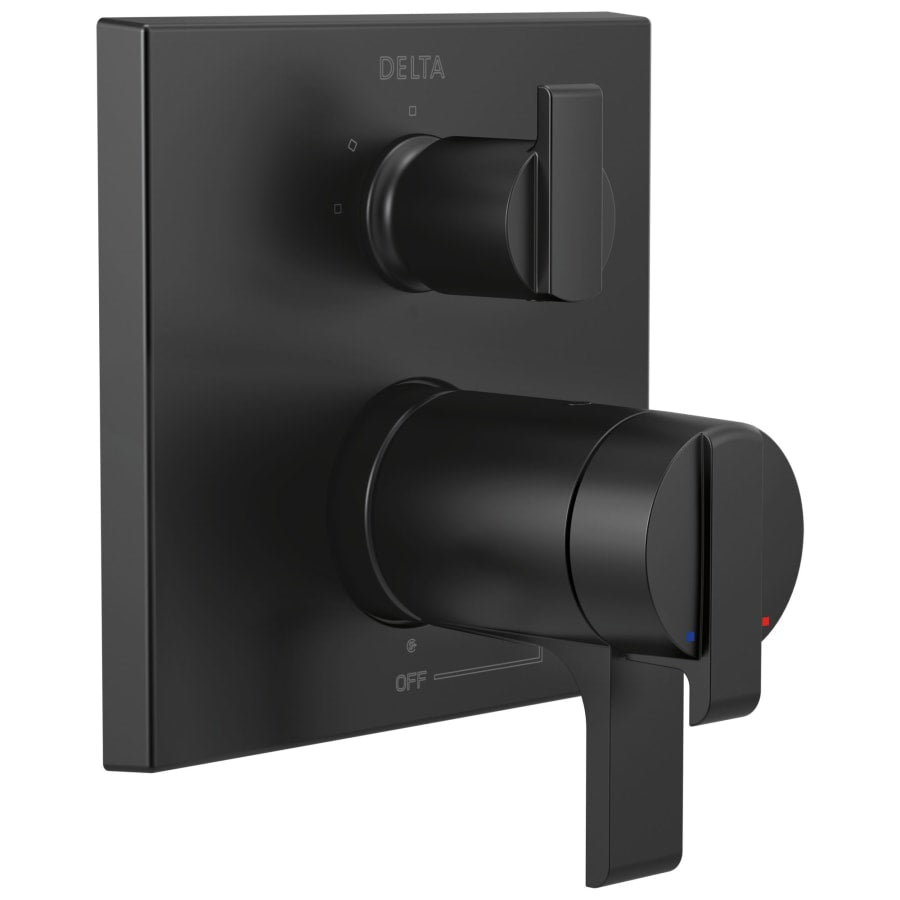

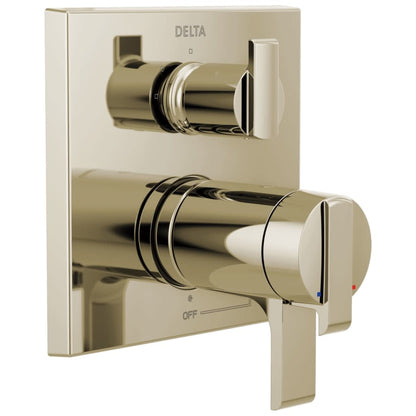

Ara 17T Series Thermostatic Valve Trim with Integrated Volume Control and 3 Function Diverter for Two Shower Applications - Less Rough-In

Delta T27T867 Features:

• Covered under Delta's limited lifetime warranty
• Premier finishing process – finishes will resist rusting and corrosion through everyday use
• Coordinates with products from the Ara line seamlessly
• Thermostatic valve trim - dual cartridges control the water temperature and volume independently
• Top handle controls diverter functions
• Bottom handle controls on / off and adjusts volume
• Dial controls temperature
• Integrated 3 function shower diverter for 2 shower applications
• 2 individual positions, 1 shared positions
• Optional non shared cartridge available RP71717 - not included
• Rough-in valve not included - when adding to cart valve options will be presented
• Complies with ADA standards
• All necessary mounting hardware is included
• Trim ships with cartridges
• Not recommended for tub spout applications
• Note: the RIGHT side diverter port MUST be capped

Delta T27T867 Specifications:

• Valve Trim Height: 6-13/16" (bottom to top)
• Valve Trim Width: 6-13/16" (left to right)

Variations:

• T27T867: this model
• T27T967: six function version of this model
• T27867: three function pressure balanced version with volume control
• T27967: six function pressure balanced version with volume control
• T24867: three function pressure balanced version no volume control
• T24967: six function pressure balanced version no volume control

3 Function Diverter Trim - 2 Individual Positions, 1 Shared Position
