Specs & Details
Dimensions: 33 3/8 H x 23 3/4 W x 24 D
APPEARANCE
| Color Appearance |
Fingerprint Resistant Stainless |
| Door Appearance |
Full-length flat door |
| Door Style |
Flat Door |
| Handle |
Towel Bar |
| Handle Color |
Fingerprint Resistant Stainless |
| Installation |
Side Installation or Top Installation Included
Built-Up Floor Capable |
FEATURES
| Active Flood Protection |
Active Flood Protect |

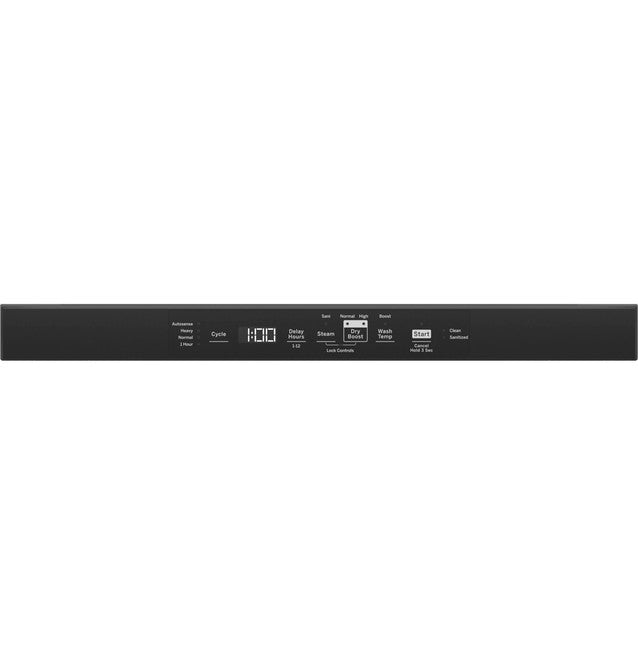

| Control Type |
Top Controls
Fully Integrated Inlaid Electronic Buttons
6 Touchpads |
| Cutlery Tray |
Optional 3rd rack (GPF3RACK) |
| Dishwasher Control Features |
3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
Last Cycle Memory
Audible End-of-Cycle Signal |
| Dishwasher Cycles |
AutoSense
Heavy Wash
Normal Wash
1 Hour Wash |
| Dishwasher Drying Features |
Dry Boost™
Calrod Heater |
| Dishwasher Options |
Dry Boost™ (High)
Dry Boost™ (Normal)
Wash TempBoost
Steam + Sani (Certified to NSF Standard 184)
Start/Reset
Lock Controls
Delay Start 1-12 Hr. with Countdown
Steam PreWash
Sabbath Mode |
| Dispenser |
Detergent
Rinse Aid |
| Exterior Style |
Traditional |
| Latch |
Center Pull |
| Leveling System |
4 Leveling Legs |
| Number of Cycles |
4 |
| Number of Options |
6 |
| Number of Place Settings |
16 |
| OU Certified |
No |
| Product Type |
Built-In |
| Rack Color |
Silver |
| Rack Features |
1 Piece Silverware Basket with 3 Cell Covers
1 Utility Shelf with Stem Safe
Chop stick slots
Ball-Tipped Tines |
| Sabbath Mode |
Yes |
| Sensor |
Clean Sensor |
| Showroom Power Mode |
Yes |
| Style |
Built-In Top Control |
| Tub and Door Liner |
Gray Plastic |
| Tub Type |
Tall Tub |

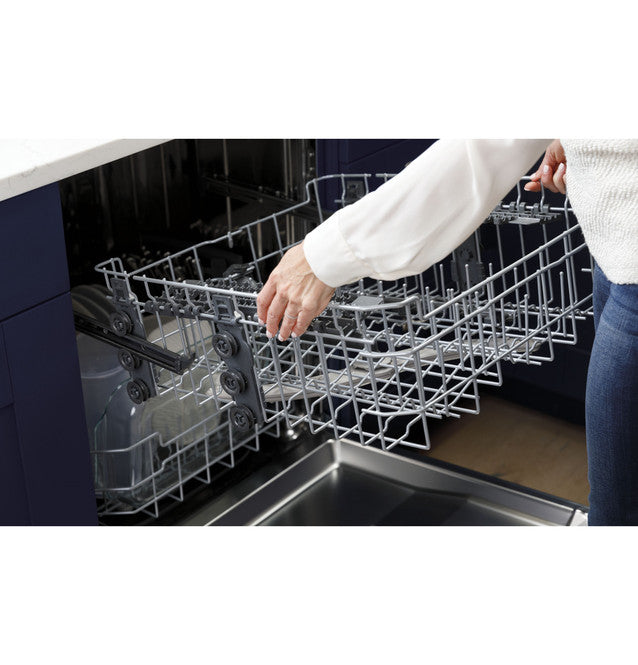

| Upper Rack |
Removable
Adjustable
1 Stem Safe Shelf |
| Wash Arms |
Upper
Middle
Lower |
| Wash System |
3-Level |
| Wash System Features |
Piranha™ Hard Food Disposer with removable filter
Automatic Temperature Control
Automatic HotStart
Fill Level Pressure Sensor
Active Flood Protect |
| Water Filtration System |
100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| WiFi Connect |
Optional (Requires part no. PBX23W00Y0) |
POWER / RATINGS
| Calrod Heater Watts |
800/500 |
| Electrical Requirements |
120V ; 60Hz ; 7.1A |
| Power Connection |
Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
WARRANTY
| Labor Warranty |
Limited 1-year entire appliance |
| Parts Warranty |
Limited 1-year entire appliance |
| Warranty Notes |
See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight |
72 lb |
| Cabinet Width |
24 in |
| Cutout Depth (in) |
24 in |
| Cutout Height (in) |
33 1/2 in |
| Cutout Width (in) |
24 in |
| Depth with Door Open |
27 1/2 in |
| Height w/ Legs Retracted - Minimum Height |
33.375 in |
| Height w/Legs Extended - Maximum Height |
34.625 in |
| Net Weight |
58 lb |
| Overall Depth |
24 in |
| Overall Height |
33 3/8 in |
| Overall Width |
23 3/4 in |
