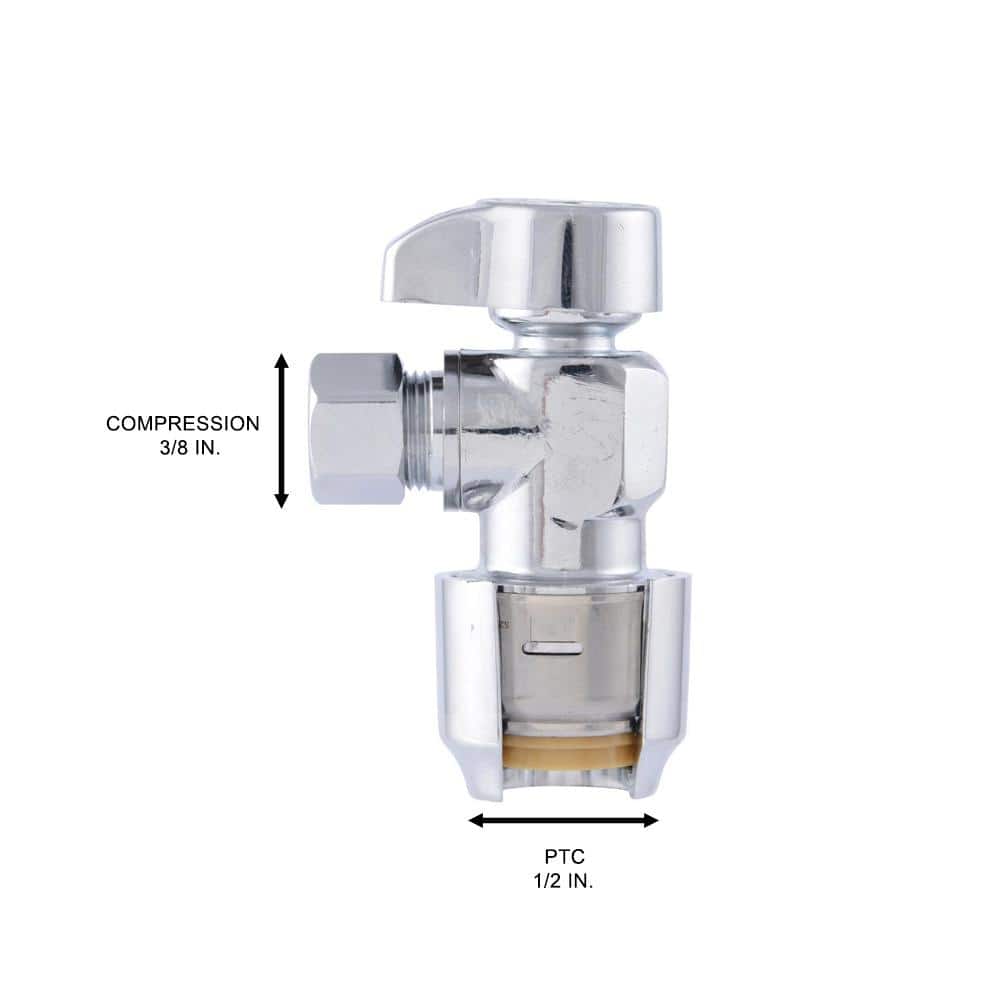

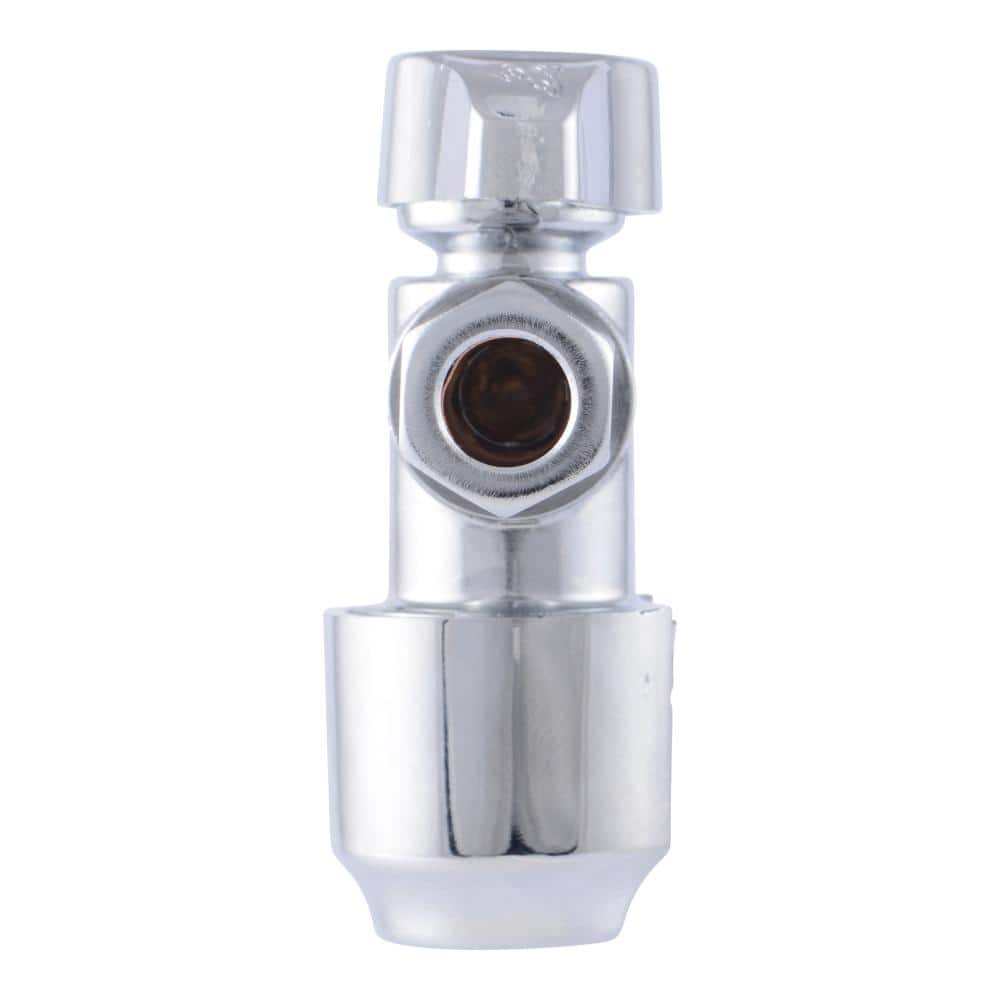

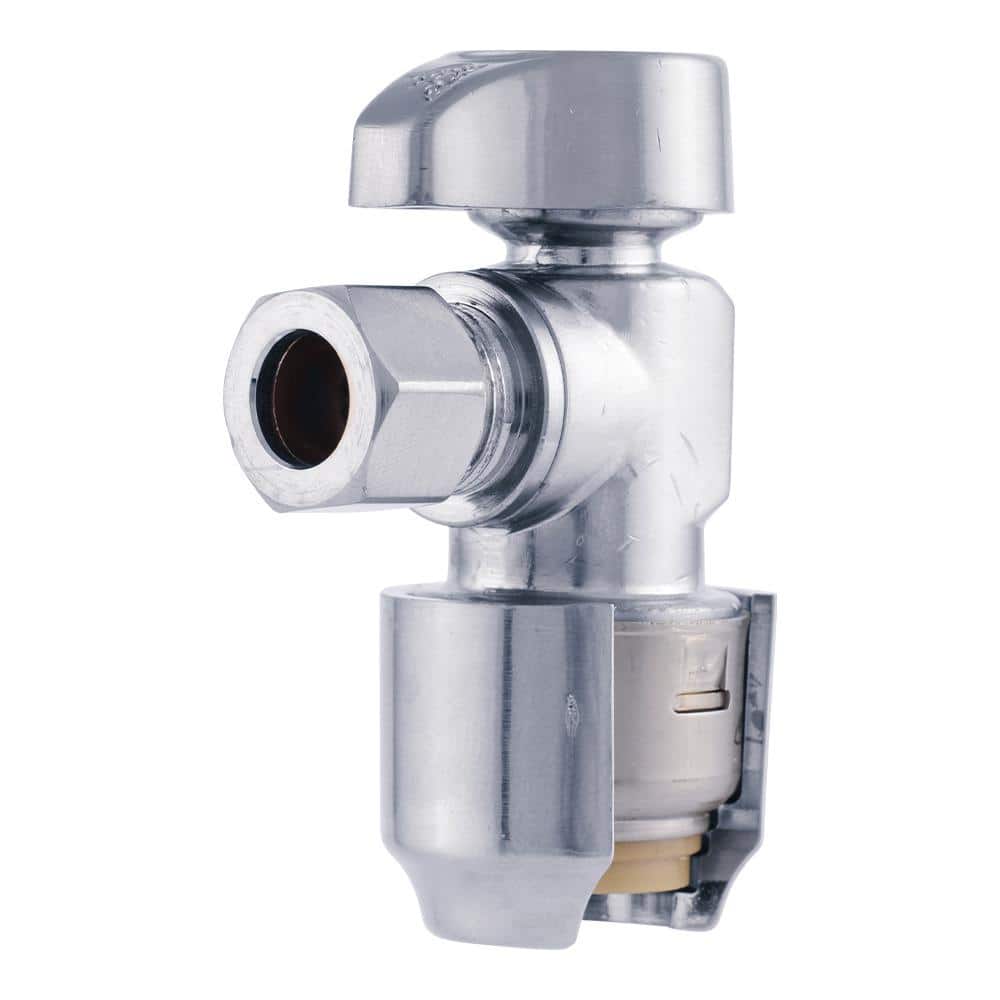

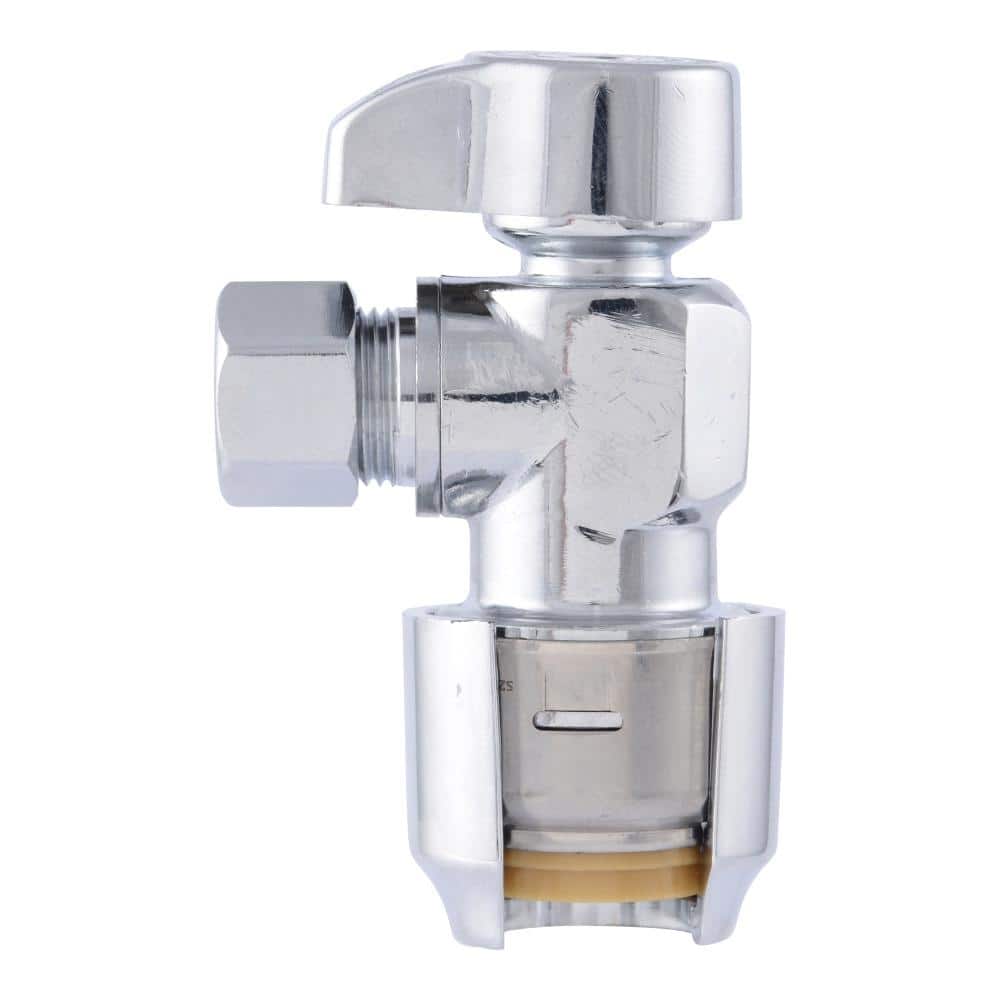

Max 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve

Max 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve

Brand:

SharkBite

In stock

List price: List price: $14.32
GoSource price: GoSource price: $12.45
List price: List price: $14.32

ID#:

SKU:highgate_ur23036

View full details

Product Description

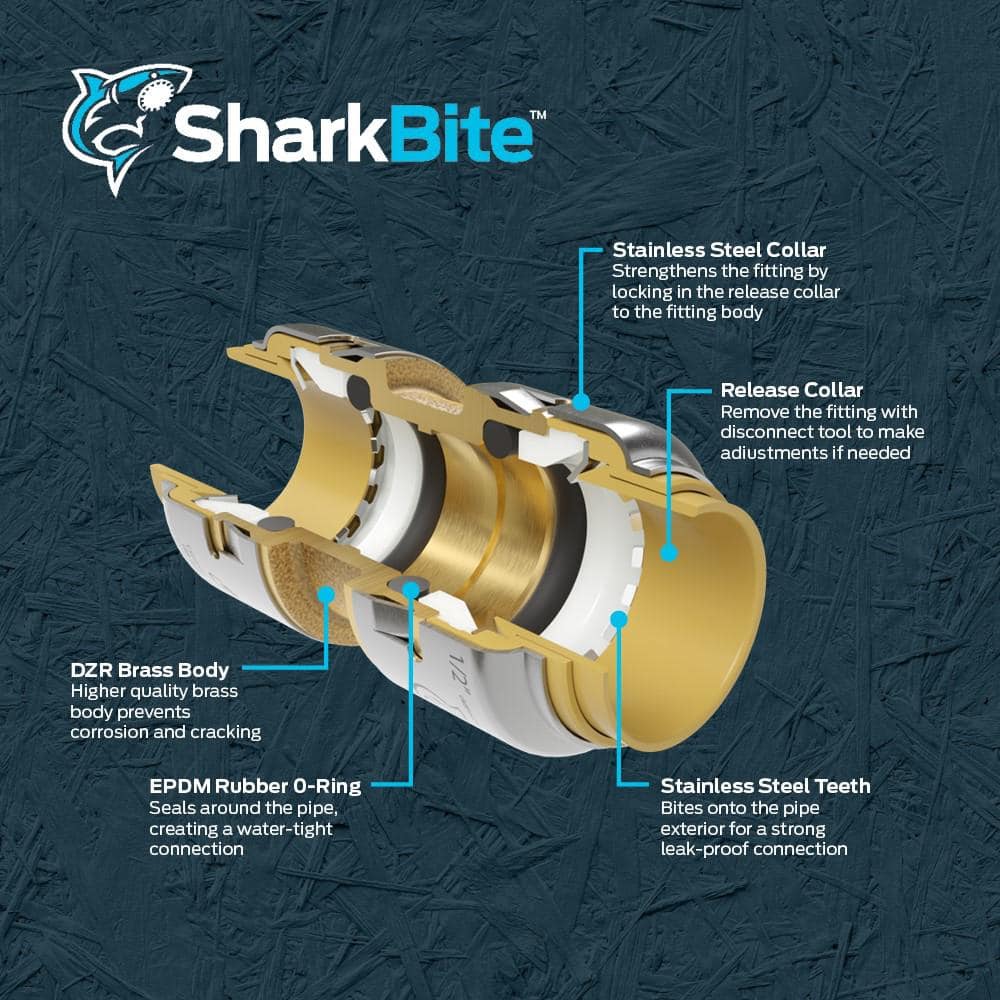

SharkBite Max push-to-connect stop valves are the fastest and easiest way to connect to PEX, copper, CPVC or PE-RT stub-outs, which control and shut off water flow to fixtures or appliances. This newly designed fitting features a stainless-steel collet retainer which delivers additional strength and durability. SharkBite Max fittings and valves don't require a PEX tube liner and a re-engineered body allows you to insert the pipe using less force and greater ease. The single lever quarter turn handle allows for quick control over water flow, especially in tight spaces. No soldering, clamps, unions, glue or special tools required. After inserting the pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The valve can be rotated after installation for quick adjustments and removing the valve is just as fast with a disconnect tool, allowing them to be changed or reused. (SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods. All other comparisons relate to first generation SharkBite push-to-connect products.).

  • Compatible with PEX, copper, CPVC PE-RT or HDPE pipe
  • Stainless steel retainer adds strength and durability
  • High-performance DZR lead-free brass body
  • No special tools, crimping, soldering or glue required
  • Can be rotated after installation
  • No PEX tube liner required
  • Approved for behind-the-wall applications with no access panels
  • Approved for underground applications (wrap required for burial)
  • Rated to 160°F and 125 psi
  • Third-party listed, compliant with applicable U.S. and Canadian plumbing codes
  • 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT
  • 5-year warranty when properly installed with HDPE SDR-9
  • Patented technology

Dimensions

  • Inlet Diameter (In.)
  • 1/2
  • Inlet Size
  • 1/2 In.
  • Outlet Diameter (In.)
  • 3/8
  • Product Depth (in.)
  • 2.618 in
  • Product Height (in.)
  • 1.614 in
  • Product Length (in.)
  • 2.618 in
  • Product Width (in.)
  • 1.142 in
  • Valve Inlet Diameter (in.)
  • 1/2
